  • 9" Vacuum Pad - for Curved Surfaces - Standard Rubber

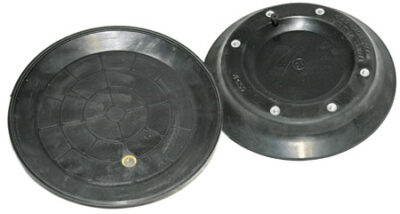

9" Vacuum Pad - for Curved Surfaces - Standard Rubber

Stock: 49520TA
Model: VPCS9
Vacuum Pad - 9" [23 cm] Dia - Concave - Side-Feed - Standard Rubber - w/Screen Filter

Details

Note: Not for use on materials thinner than 1/8".

Dimensions in inches & [millimeters]:
( ) = Dimensions when attached to flat surfaces
R* = smallest radius of curvature of materials the pad can attach to

*only applies to R in profile view (right)


To determine pad capacities on specific equipment,
CLICK HERE

Specifications

Model VPCS9
SKU 49520TA
Surface Curvature Curved
Material and Ambient Temperature Range 32° F [0° C] — 100° F [38° C]
Rubber Type Standard
