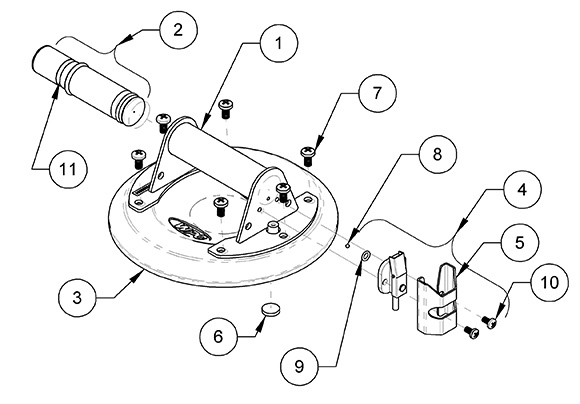

Parts for Metal-Handle Vacuum Cups

(Models N4300, N5300, N6300, N4950, N4950TS, N5450, N5450CS and N6450)

Need help?  Click here for maintenance, troubleshooting and repair guide.

  1. Handle
    90510AM
  2. Plunger Assembly
    90154AM
      – ABS (for N4300, N5300 & N6300)
    90158AM  – ABS – for High Elevations (for N4300, 5300, 6300, N4950, N5450, N5450CS, N6450)
    90520AM – Metal (for N4950, N5450, N5450CS & N6450)
    90524AM  – Metal – with Low Vacuum Audio Alarm (for N4950, N5450, N5450CS & N6450)
  3. Vacuum Pad
    49486T   – 8″ [20 cm] Diameter – for Flat Surfaces
    49488T   – 8″ [20 cm] Diameter – for Textured Surface
    49495T   – 8″ [20 cm] Diameter – for IMP & Cladding Surfaces
    49478T   – 8″ [20 cm] Diameter – for Smudge-Sensitive Surfaces
    49506T   – 9″ [23 cm] Diameter – for Flat Surfaces
    49520T   – 9″ [23 cm] Diameter – for Curved Surfaces
    49586T   – 10″ [25 cm] Diameter – for Curved Surfaces
  4. Valve Block w/Release Lever and Guard
    90500
  5. Valve Guard
    51506
  6. Air Filter
  7. Screw – 1/4-20 x 1/2″
    10002
  8. Check Ball
  9. O-Ring
  10. Screw – 10-32 x 3/8″
    10008
  11. Red Line

Repair Kit (includes 6., 8., 9. and Plunger Lube)
90504

Carrying Case
29334 – Black – for 8″ [20 cm] Metal Hand Cup
29335 – Grey – for 8″ [20 cm] Metal/ABS Hand Cup
29338 – Black – for 9″ [23 cm] Metal or ABS Hand Cup
29342 – Black – for 10″ [25 cm] Metal or ABS Hand Cup
