Parts for Vertical-Handle Vacuum Cups

(Model LJ6VH & TL6AG)

Need help? Click here for maintenance, troubleshooting and repair guide.

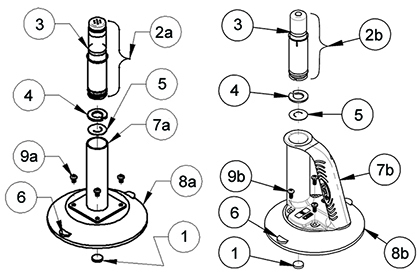

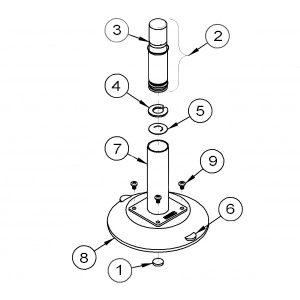

Parts for Vertical and Angle Cups
  1. Filter*
  2. Plunger Assembly
    1. 90520AM
      90524AM - with Low Vacuum Audio Alarm
    2. 90154AM
  3. Red Line
  4. Check Valve Retainer*
  5. Check Valve*
  6. Release Tab
  7. Handle
    1. 90115
    2. 61130RP
  8. Vacuum Pad - for Curved Surfaces
    1. 49416T - 6" [15 cm] Diameter - Center Feed
      49414T - 6" [15 cm] Diameter - Center Feed- Low-Marking
    2. 49386T - 6" [15 cm] Diameter - Side Feed
  9. Screw - 10-32 x 5/16"
    1. 10006
    2. 10014

*Repair Kit (includes 1., 4., 5. and Plunger Lube)

90160

Pad Cover

29312
