- 6" Mounting Cup w/ 3/8-16 x 5/8" Threaded Stud
Product(s) sold through Authorized Dealers

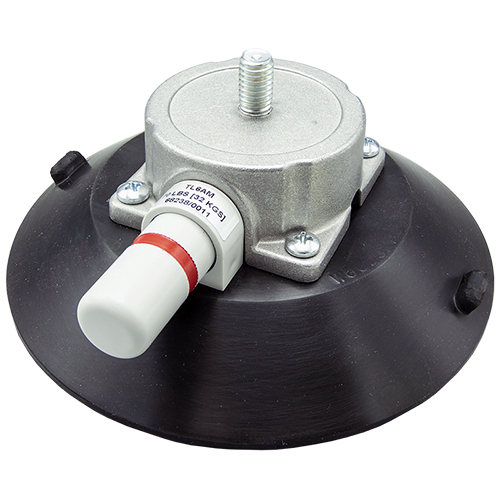

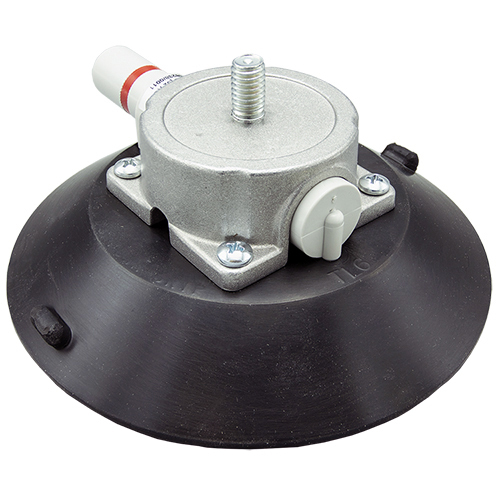

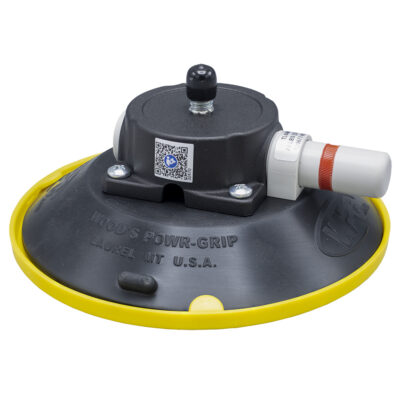

6" Mounting Cup w/ 3/8-16 x 5/8" Threaded Stud
Stock: 91357
Model: TL6AM-91357
Provides a reliable, temporary mounting point for equipment, without marking or damaging most surfaces.
- 5/8" Long 3/8-16 Threaded Stud
Details
Features & Benefits:
- Eliminates the need for drilling holes when mounting equipment
- Red-line indicator warns user of any significant vacuum loss

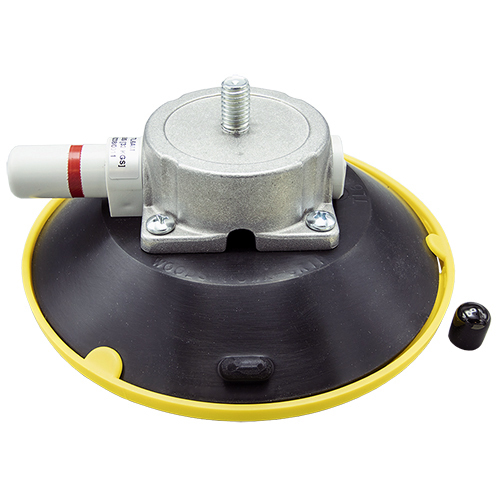

- Supplied with pad protector to prevent damage
Options:
- Other stud lengths and threads available
Specifications
Instructions Download
Troubleshooting Download
Connection Point 5/8" Long 3/8-16 Threaded Stud
Ideal Uses Mounting equipment on smooth, nonporous surfaces
Load Capacity Click Here
Allowable Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F [-18° C] — 120° F [49° C]
Pad Diameter 6" [15 cm]
Pad Model TL6
Rubber Type Standard
Associated Parts
Stock#: 49386T
Model#: TL6
Model#: TL6
