- 4-½" Mounting Cup w/ 3/8-16 x 5/8" Threaded Stud
Product(s) sold through Authorized Dealers

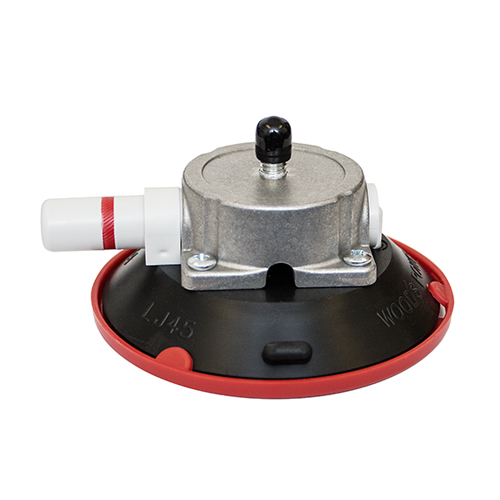

4-½" Mounting Cup w/ 3/8-16 x 5/8" Threaded Stud
Stock: 91225
Model: LJ45AM-91225
Provides a reliable, temporary mounting point for equipment, without marking or damaging most surfaces.
- 5/8" Long 3/8-16 Threaded Stud
Details
Features & Benefits:
- Eliminates the need for drilling holes when mounting equipment
- Red-line indicator warns user of any significant vacuum loss
- Supplied with pad protector to prevent damage
Options:
- Other stud lengths and threads available
Specifications
Instructions Download
Troubleshooting Download
Connection Point 5/8" Long 3/8-16 Threaded Stud
Ideal Uses Mounting equipment on smooth, nonporous surfaces
Load Capacity Click Here
Allowable Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F [-18° C] — 120° F [49° C]
Pad Diameter 4-1/2" [11 cm]
Pad Model LJ45
Rubber Type UV-Resistant
Associated Parts
Stock#: 49345T
Model#: LJ45
Model#: LJ45
