- Products
- Mounting Cups
- 4-½" Mounting Cup with ¼-20 x ¼" Threaded Stud
Product(s) sold through Authorized Dealers

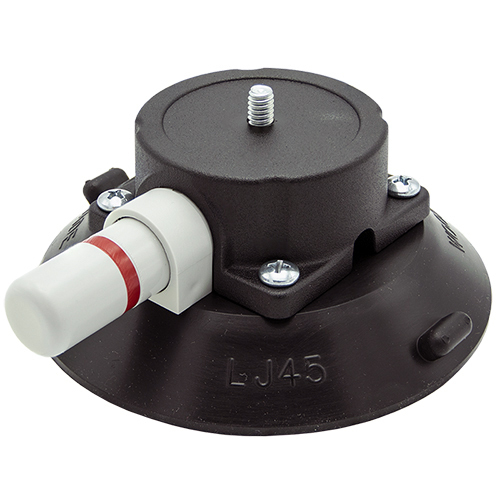

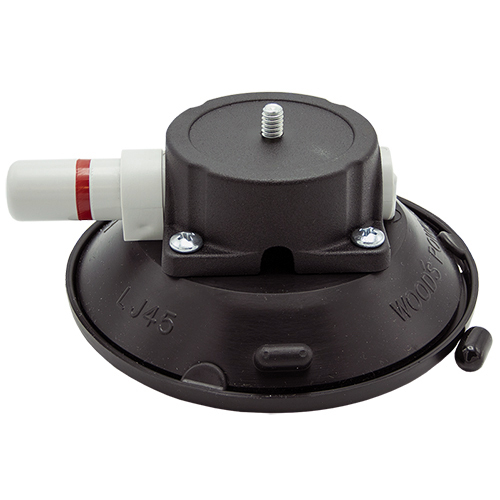

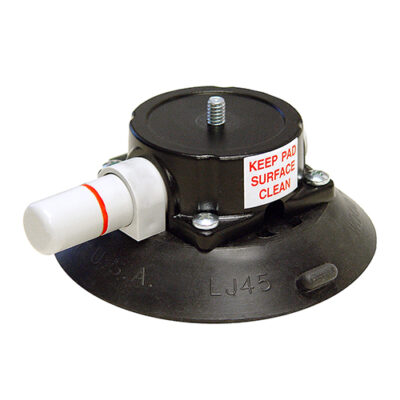

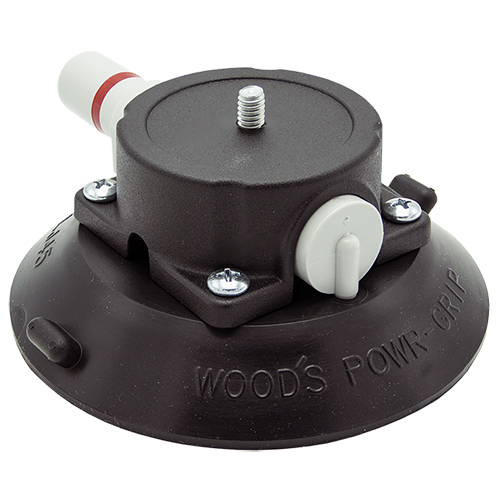

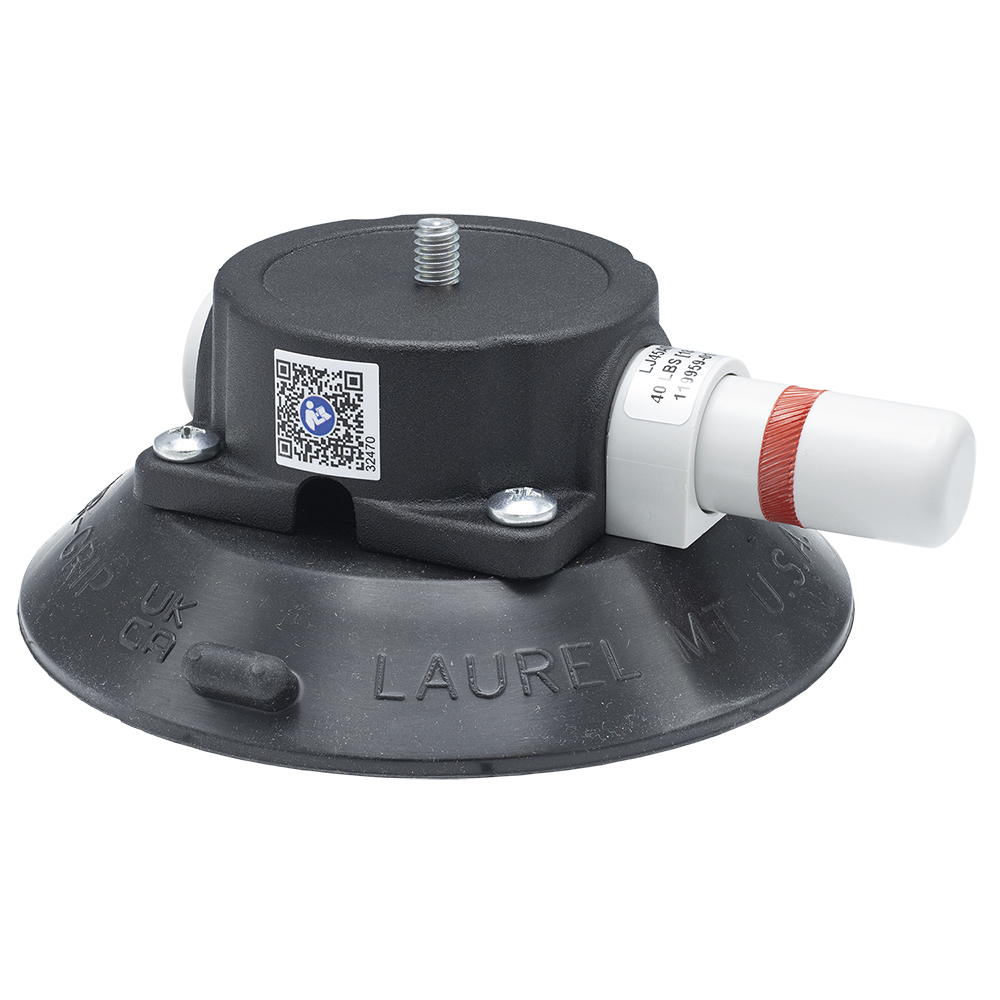

4-½" Mounting Cup with ¼-20 x ¼" Threaded Stud
Stock: 91207
Model: LJ45AMB-91207
Provides a reliable, temporary mounting point for equipment, without marking or damaging most surfaces.
- 1/4" Long by 1/4-20 Threaded Stud
Details
- Eliminates the need for drilling holes when mounting equipment
- Red-line indicator warns user of any significant vacuum loss

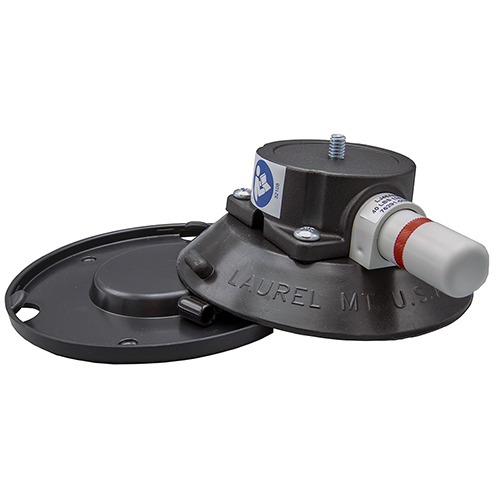

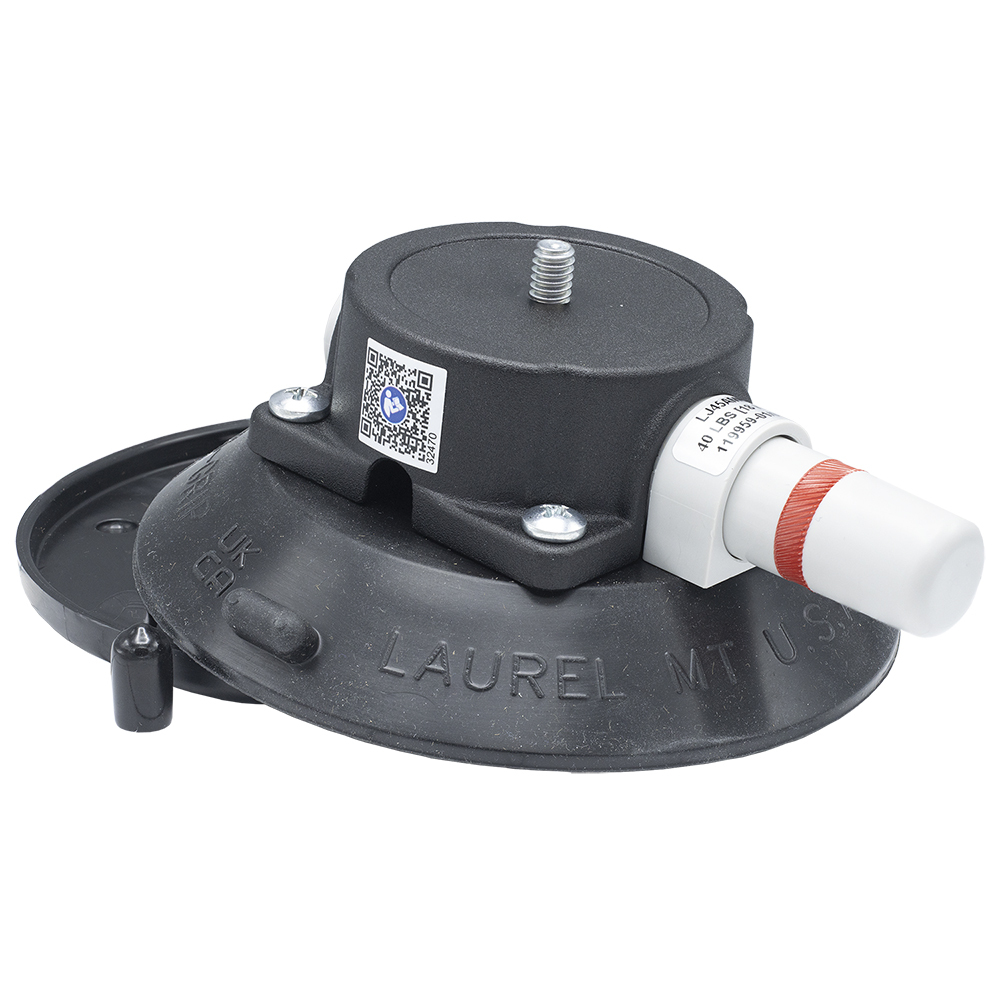

- Supplied with pad protector to prevent damage
- Other stud lengths and threads available
Specifications
Instructions Download
Troubleshooting Download
Connection Point 1/4" long x 1/4-20 Threaded Stud
Ideal Uses Mounting equipment on smooth, nonporous surfaces
Load Capacity Click Here
Allowable Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F — 120° F (-18° C — 49° C)
Pad Diameter 4-1/2" (11 cm)
Pad Model LJ45
Rubber Type UV-Resistant
Associated Parts
Stock#: 49345T
Model#: LJ45
Model#: LJ45
