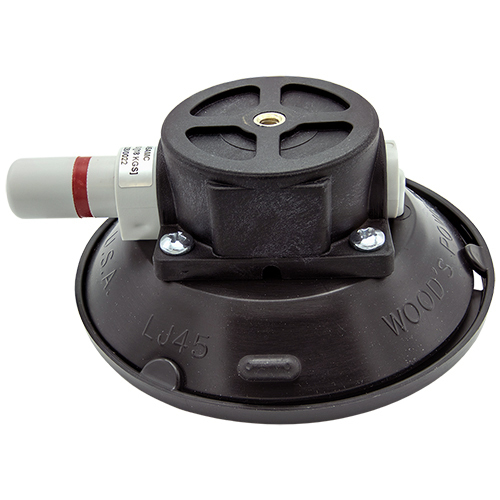

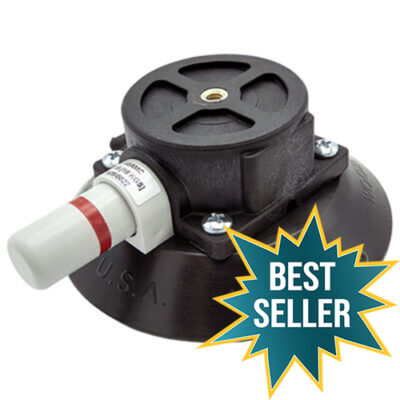

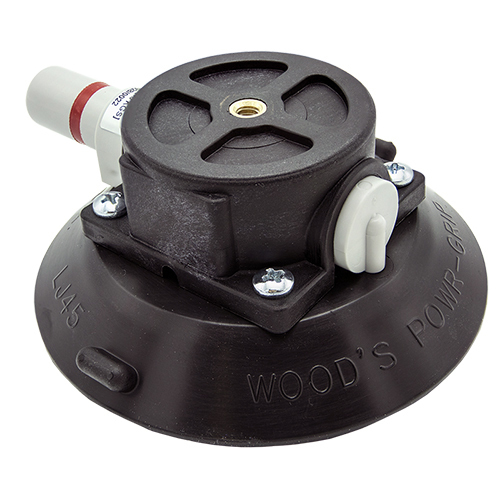

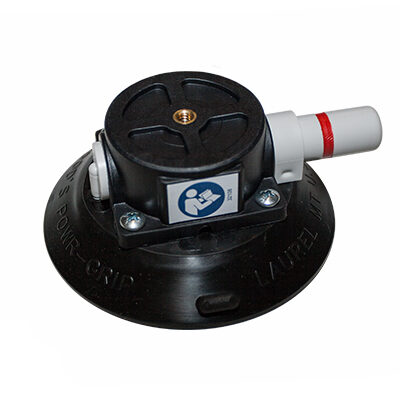

4-½" Mounting Cup w/ ¼-20 Threaded Hole

Stock: 91240
Model: LJ45AM-91240

Provides a reliable, temporary mounting point for equipment, without marking or damaging most surfaces.

  • 1/4-20 Threaded Hole


Features & Benefits:

  • Eliminates the need for drilling holes when mounting equipment.
  • Red-line indicator warns user of any significant vacuum loss.
  • Supplied with pad protector to prevent damage.


  • Other threads available


Instructions Download
Troubleshooting Download
Connection Point 1/4-20 Threaded Hole
Ideal Uses Mounting equipment on smooth, nonporous surfaces
Load Capacity Click Here
Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F [-18° C] — 120° F [49° C]
Pad Diameter 4-1/2" [11 cm]
Pad Model LJ45
Rubber Type Standard
