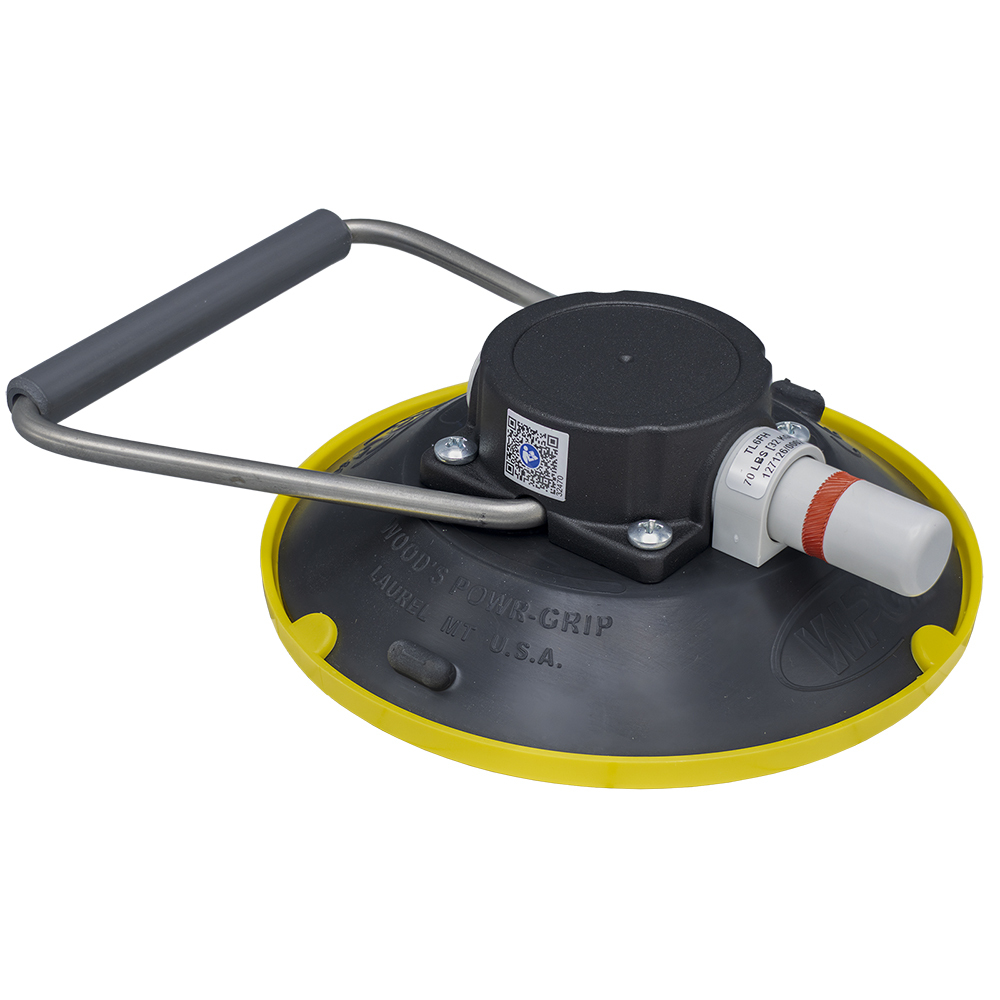

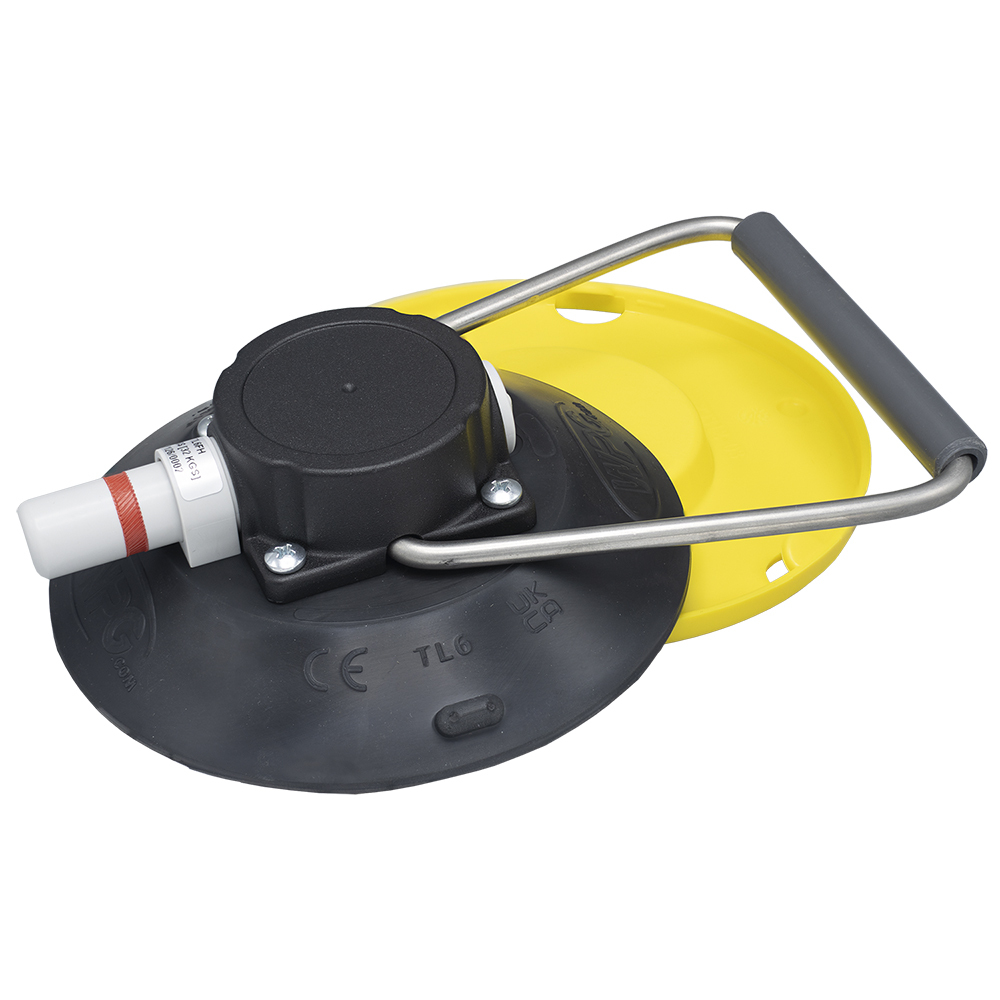

6" Flip Handle Hand Cup for Flat Surfaces
Stock: 91310
Model: LP6FH-91310
This cup has a flip bail handle that permits loads to swing or change orientation, while a narrow profile allows for attachment in tight locations. It has a lifting capacity of 70 lbs (32 kg).
Details
- Fast attach and release on loads with flat surfaces
- Red-line indicator warns user of any significant vacuum loss
- Supplied with vacuum pad protector
Specifications
Instructions Download
Troubleshooting Download
Load Capacity 70 lbs (32 kg)
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Flat
Material and Ambient Temperature Range 0° F — 120° F (-18° C — 49° C)
Pad Diameter 6" (15 cm)
Pad Model LP6
Rubber Type Standard
Handle Type Metal
