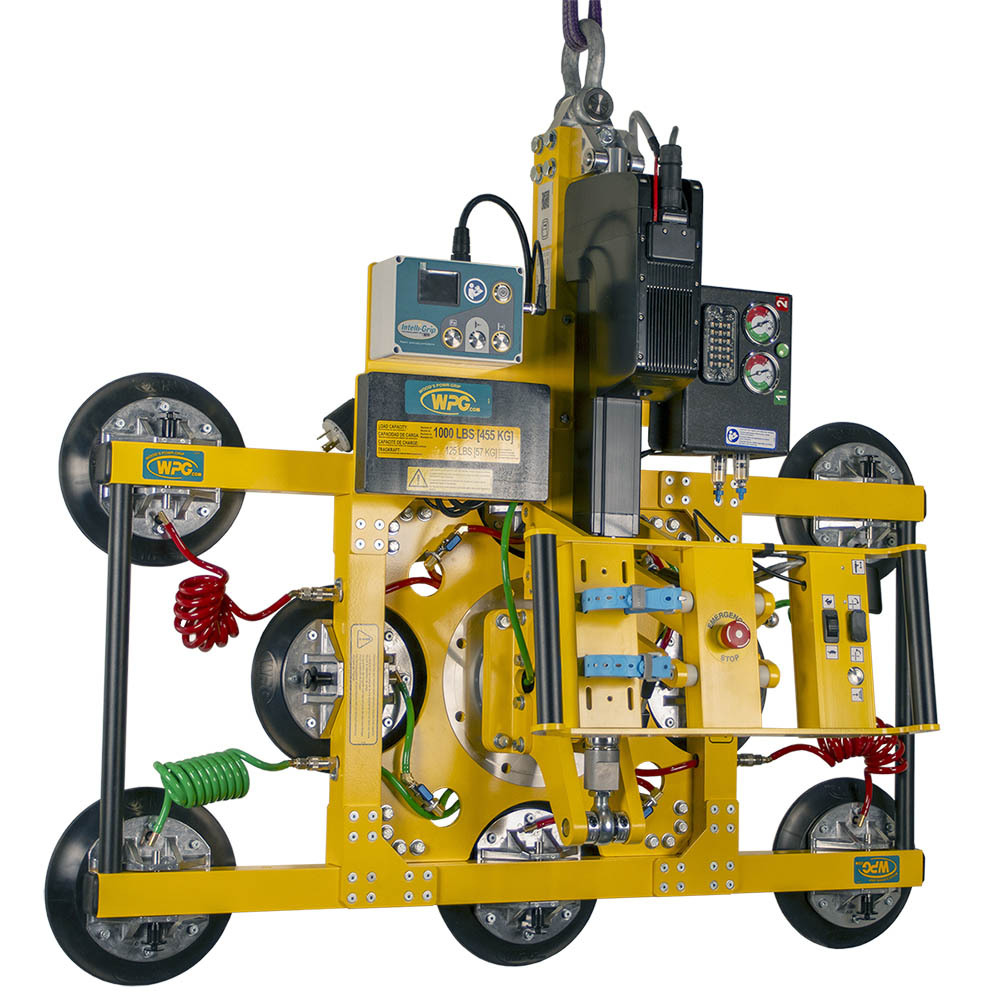

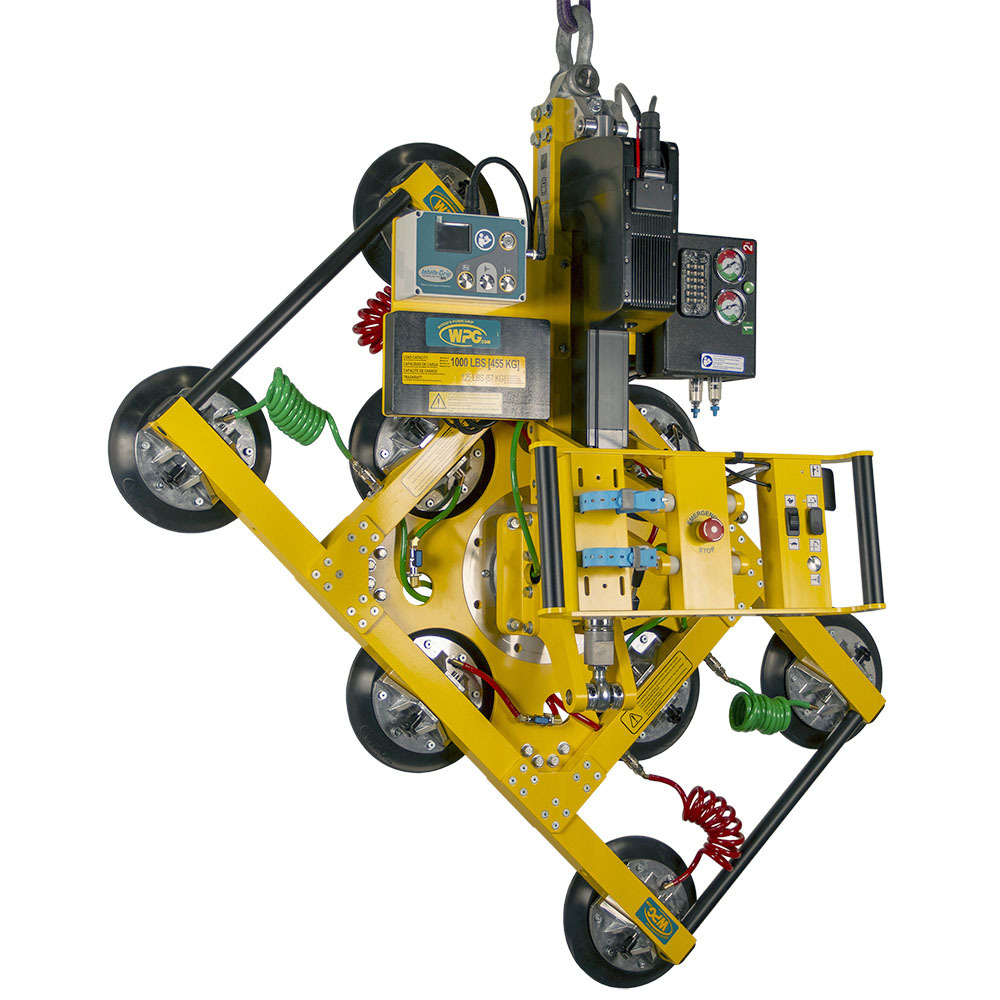

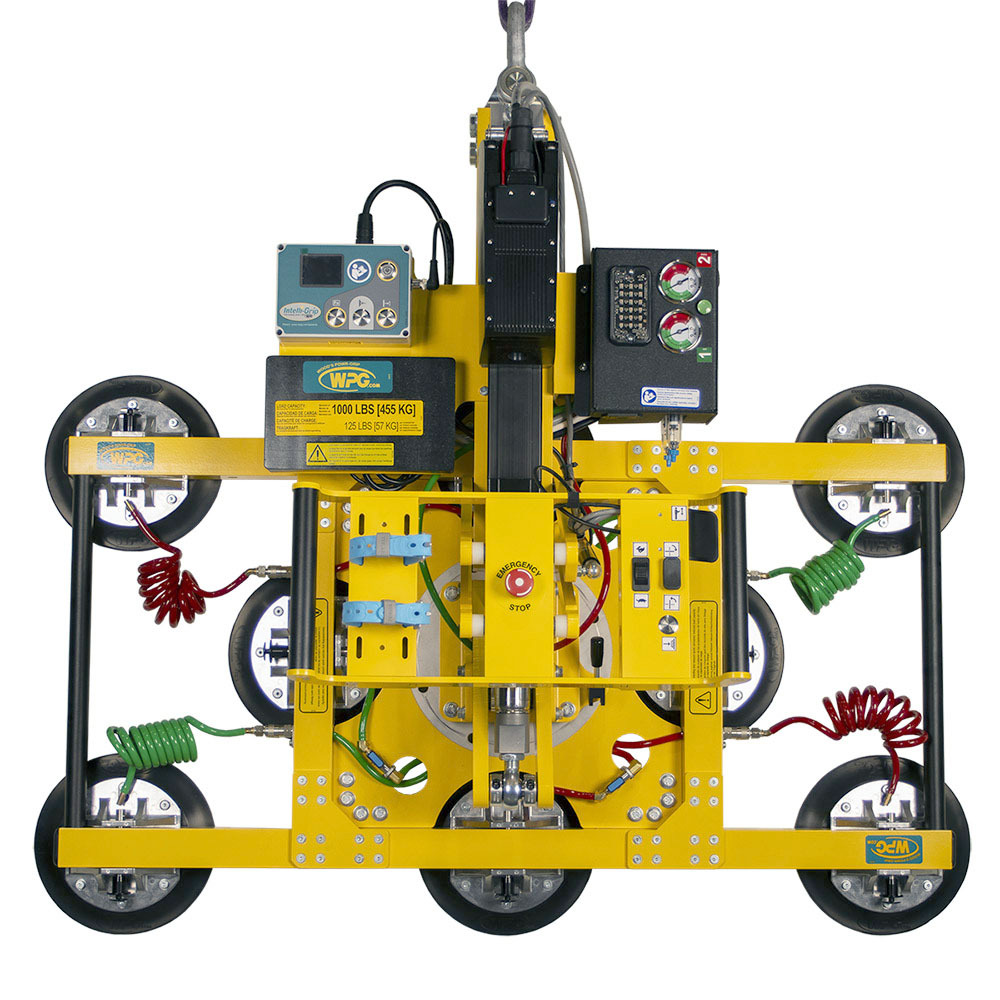

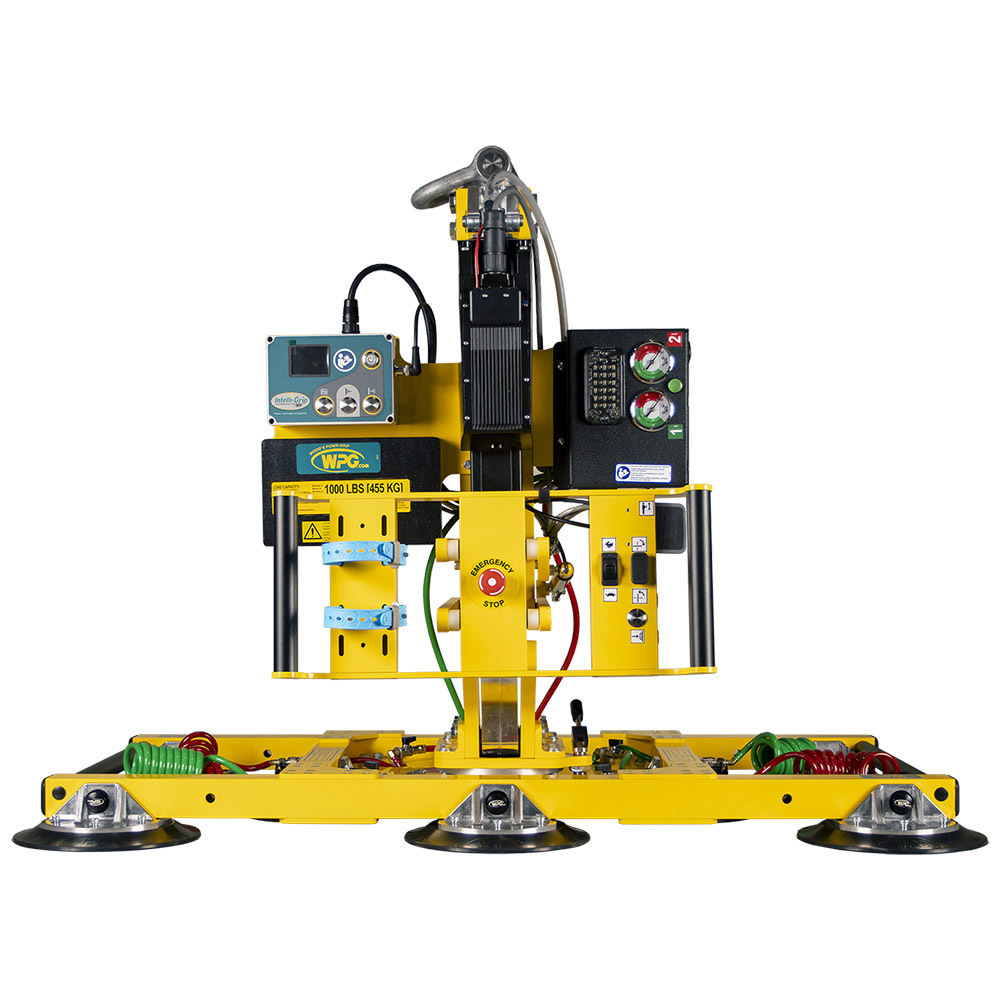

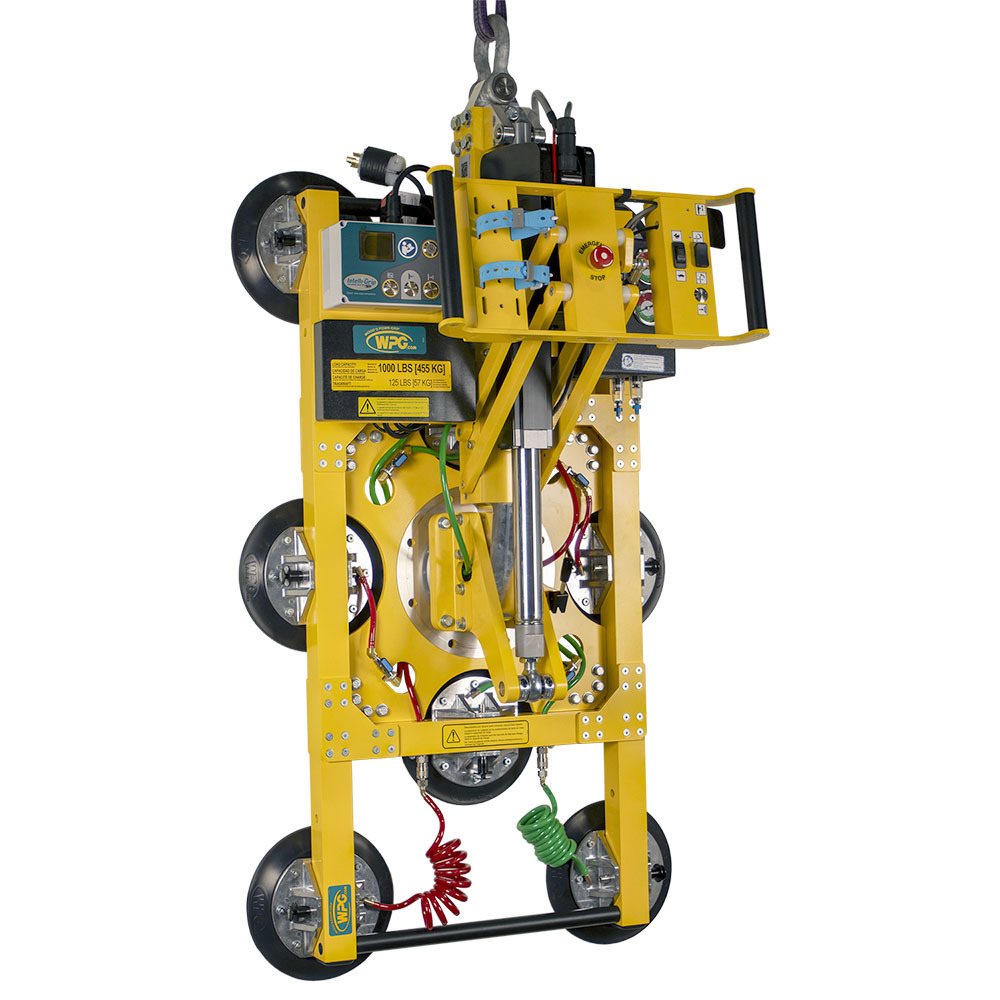

MRPT8 Production Lifter

Made in Montana

This 1000 lbs [455 kg] capacity lifter has an adjustable tilt speed, providing you with precise control over your lifting operations. It features powered 90° tilt, continuous 360° rotation, and fast attach and release times, making it an ideal choice for production and fabrication facilities.

Comes w/ Intelli-Grip® Technology, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

Rotator/Tilter


Stock# Model# Description Load Capacity Power More InformationQty
98841 MRPT89AC3

AC, outlet-powered lifter w/ Intelli-Grip & Dual Vacuum system.

1000 lbs [455 kg] AC Instructions Service Manual Troubleshooting Specifications
58596EX 58596EX
OPTION: MRPT8-AC3 Extension Arm

Increases pad spread to reduce overhang on large loads. (Sold as a set of 4.)

58599 N/A
OPTION: Voltage Adaptation — USA

Power transformer adapts lifter for 1 kVA, 480 V, 60 Hz AC power source. Must be ordered with lifter.
Note: Requires Lift Bar Extension option for transformer mounting location.

58593 N/A
OPTION: Lift Bar Extension

Improves the hang angle by moving the lift point up and over the pad frame. Also provides a convenient mounting location for a power transformer.
Note: Transformer not included.

Instructions

Details
