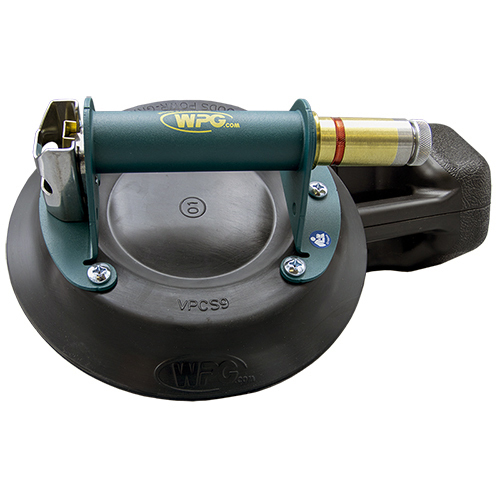

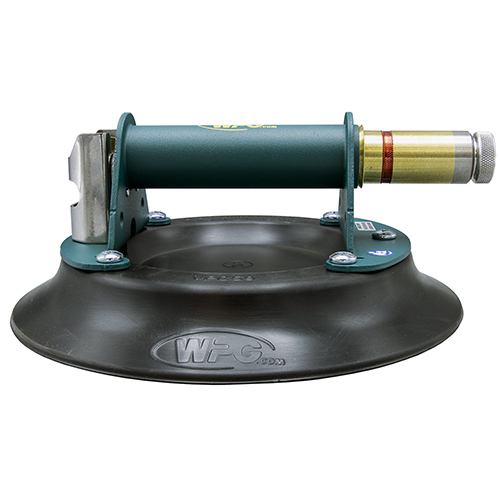

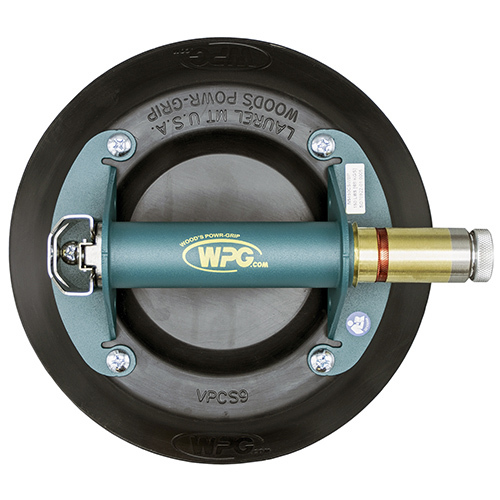

9" Hand Cup for Flat or Curved Surfaces with Low Vacuum Audio Alarm

Stock: 91722

Model: N5450CSWBP

This metal-handle cup attaches easily to curved, nonporous surfaces, weighing up to 150 lbs [68 kg]. Not for use on thin, fragile materials.
Eligible for the WPG Hand Cup Exchange Program!
Built-in audio alarm automatically powers on or off as needed, increasing battery life and simplifying operation.

Request More Information Find a Dealer

Details

Note: Not for use on materials thinner than 1/4".

Features:

Also attaches to flat surfaces (requires more pumping than Hand Cups for flat surfaces)
Red-line indicator provides user with visual warning of any vacuum loss
Low Vacuum Audio Alarm emits 70 dBA at 36" [91 cm] audible alarm for situations when the red-line indicator is difficult to see
Environmentally-friendly design significantly increases lifespan of battery (about 30 hours of continuous use)

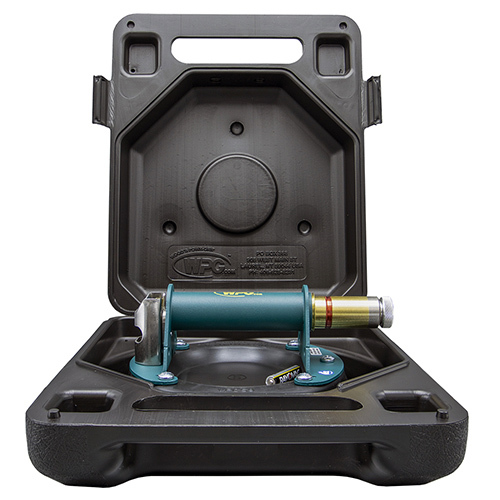

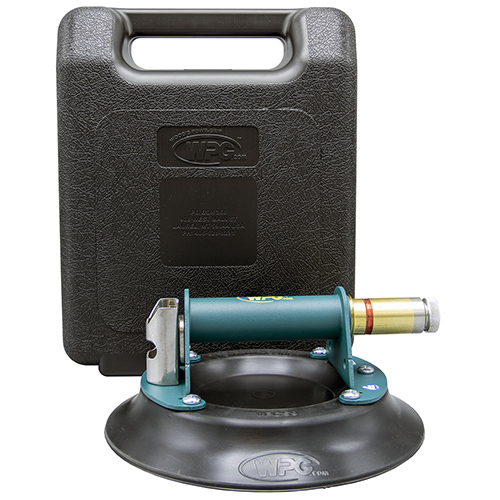

Supplied with protective carrying case and battery

Specifications

Instructions Download

Specifications Download

Load Capacity 150 lbs [68 kg]

Surface Texture Smooth

Material Porosity Nonporous

Allowable Surface Curvature Curved or irregular nonporous surfaces

Material and Ambient Temperature Range 10° F [-12° C] — 120° F [49° C]

Pad Diameter 9" [23 cm]

Pad Model VPCS9

Rubber Type Standard

Handle Type Metal
