- 10" Hand Cup for Curved Surfaces with Low Vacuum Audio Alarm

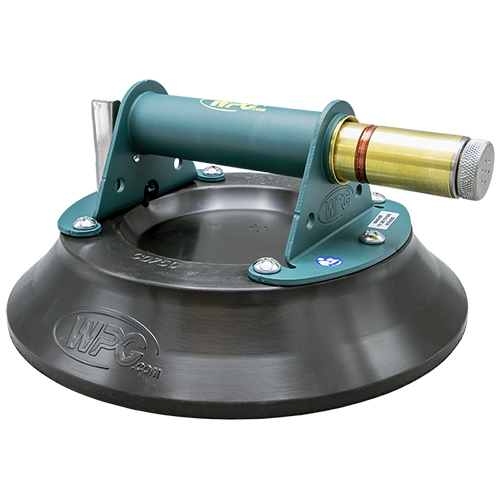

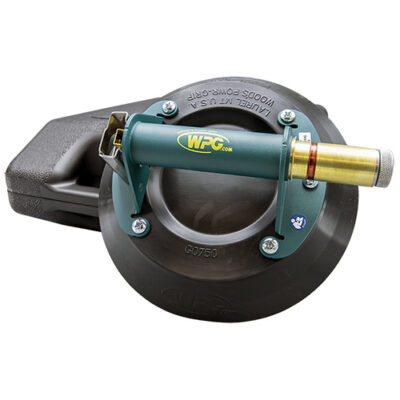

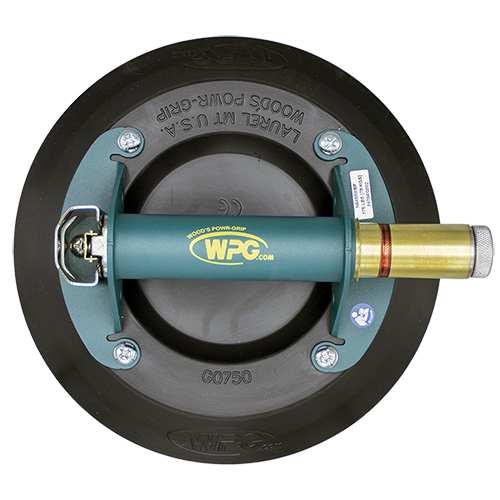

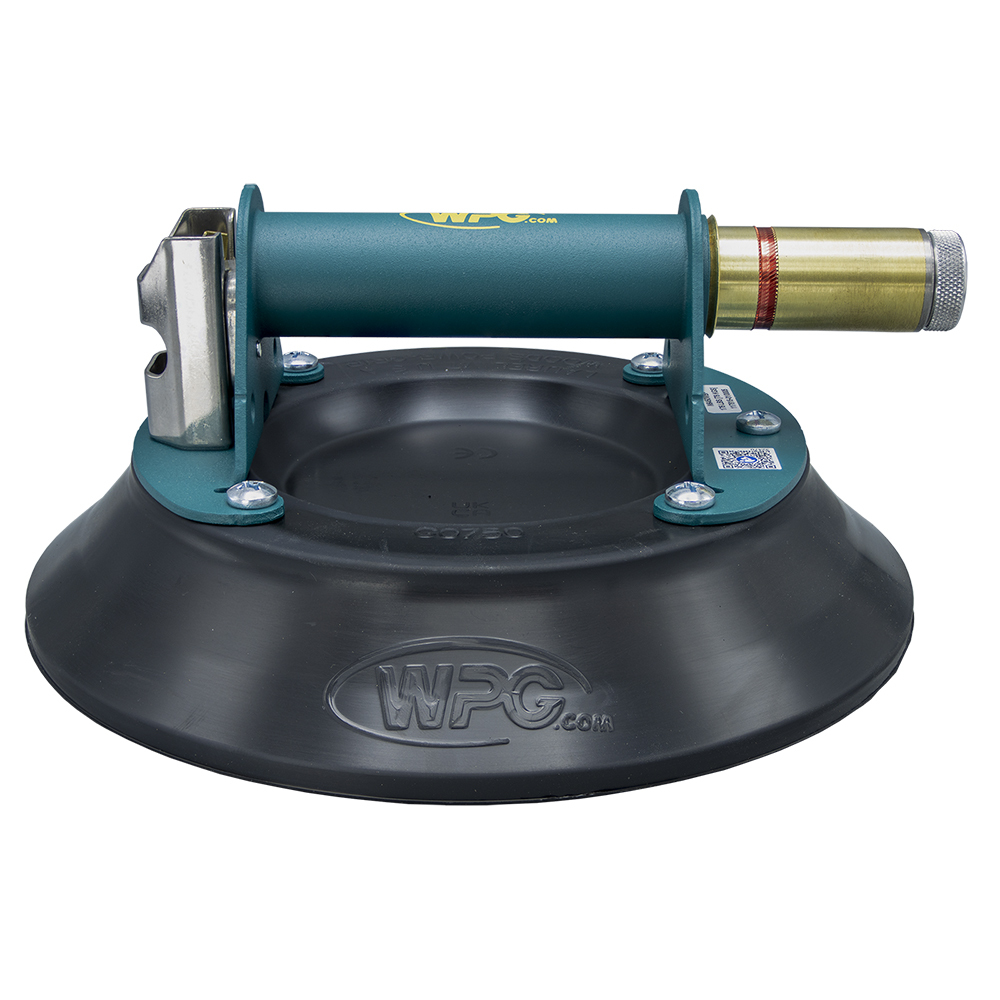

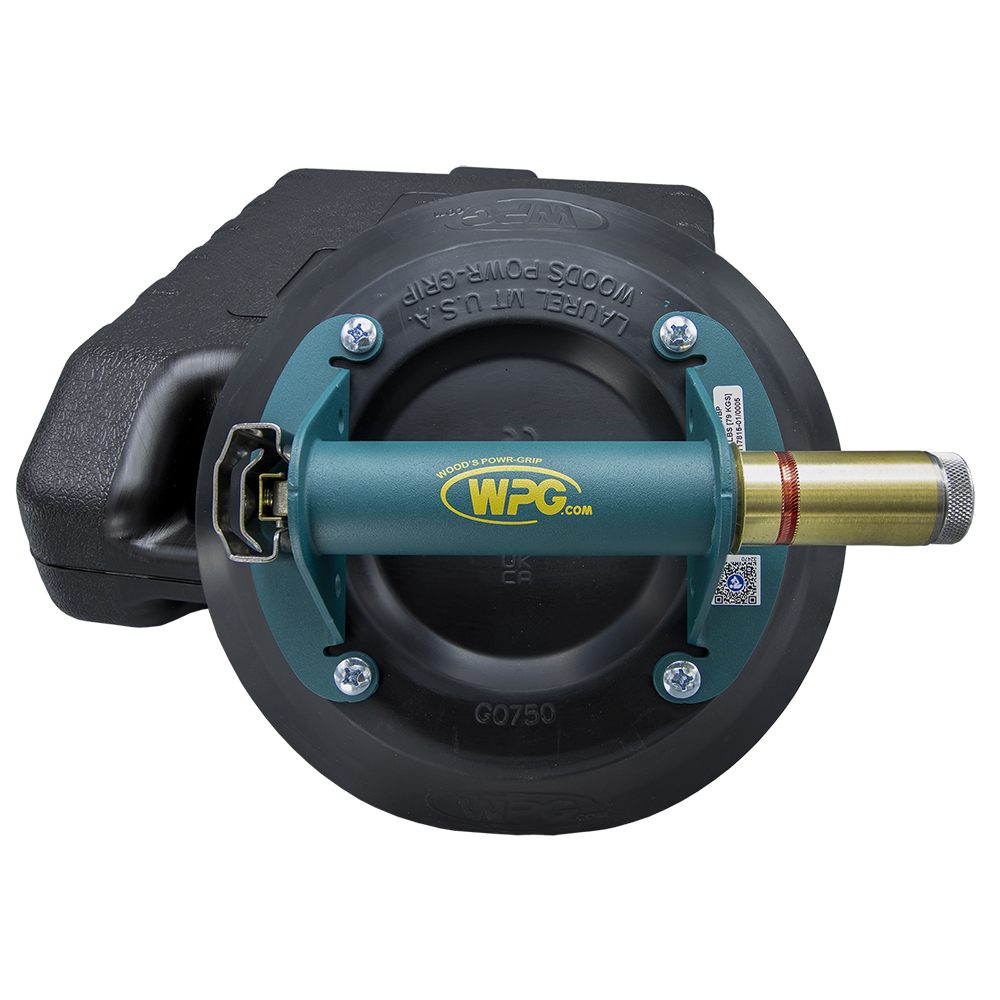

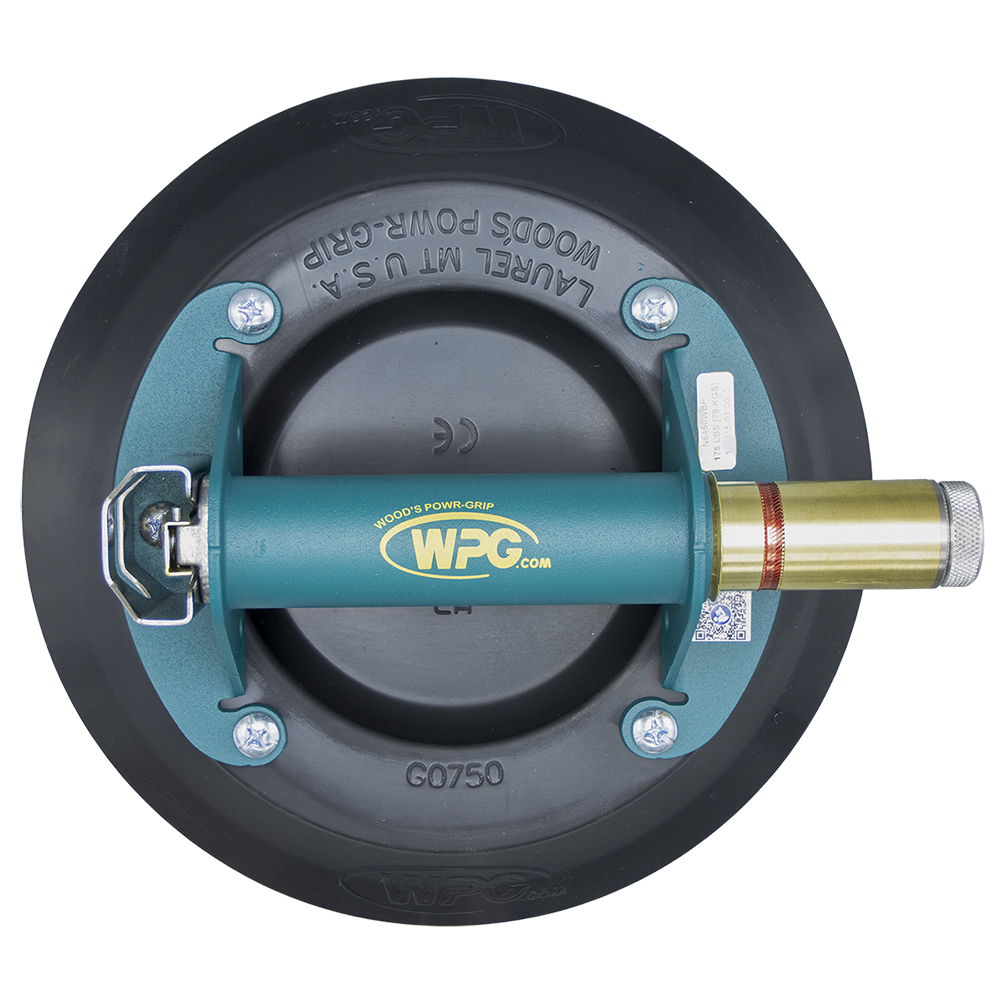

10" Hand Cup for Curved Surfaces with Low Vacuum Audio Alarm
Stock: 91807
Model: N6450WBP
This metal-handle cup attaches easily to curved, nonporous surfaces weighing up to 175 lbs [79 kg]. Comes with Low Vacuum Audio Alarm. Not for use on thin, fragile materials.
Details
Note: Not for use with materials thinner than 1/4".
Features:
- Red-line indicator provides user with visual warning of any vacuum loss
- Low Vacuum Audio Alarm emits 70 dBA at 36" [91 cm] audible alarm for situations when the red-line indicator is difficult to see
- Environmentally-friendly design significantly increases lifespan of battery (about 30 hours of continuous use)

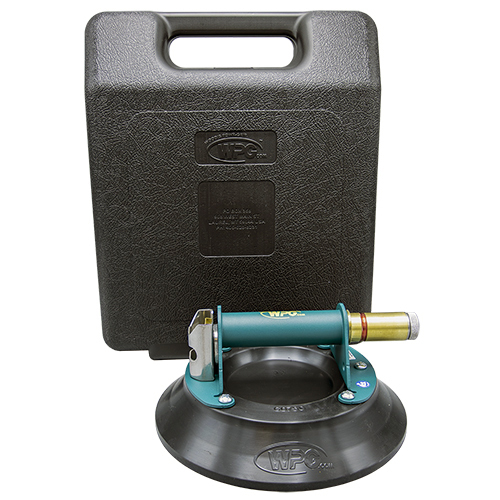

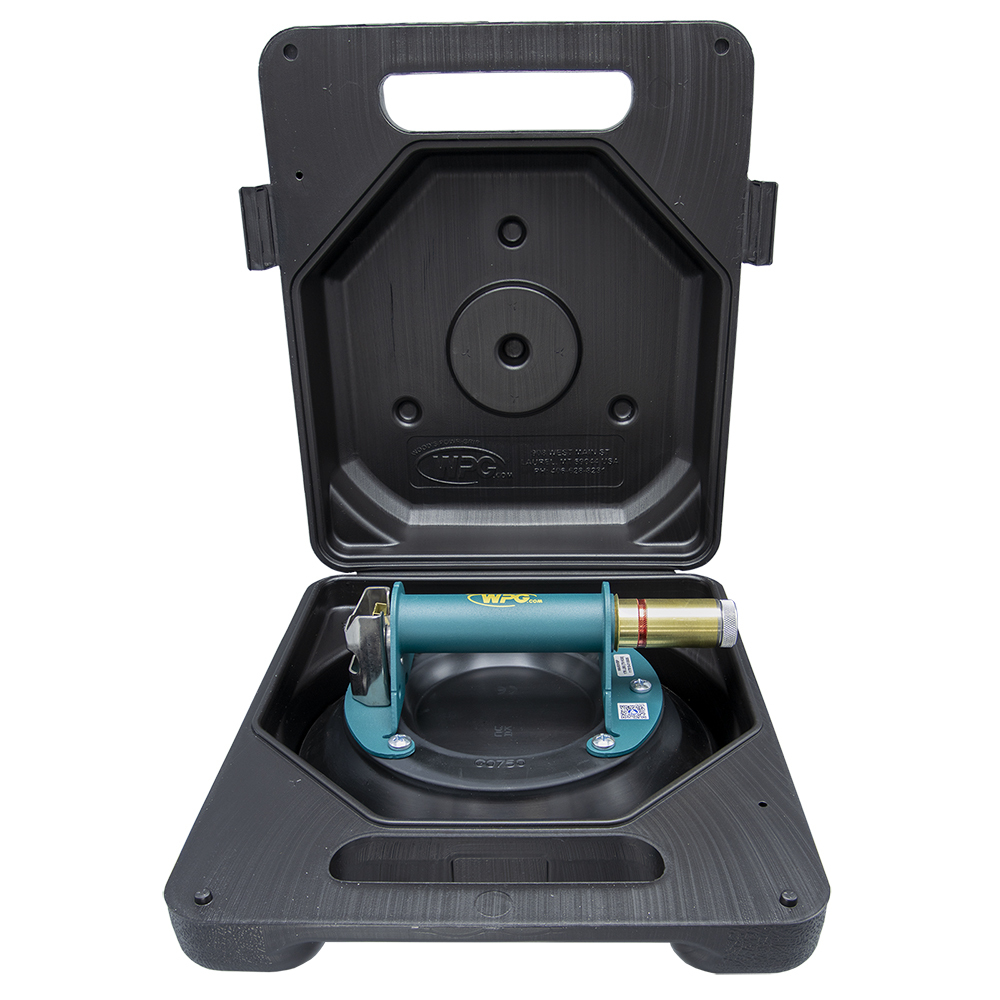

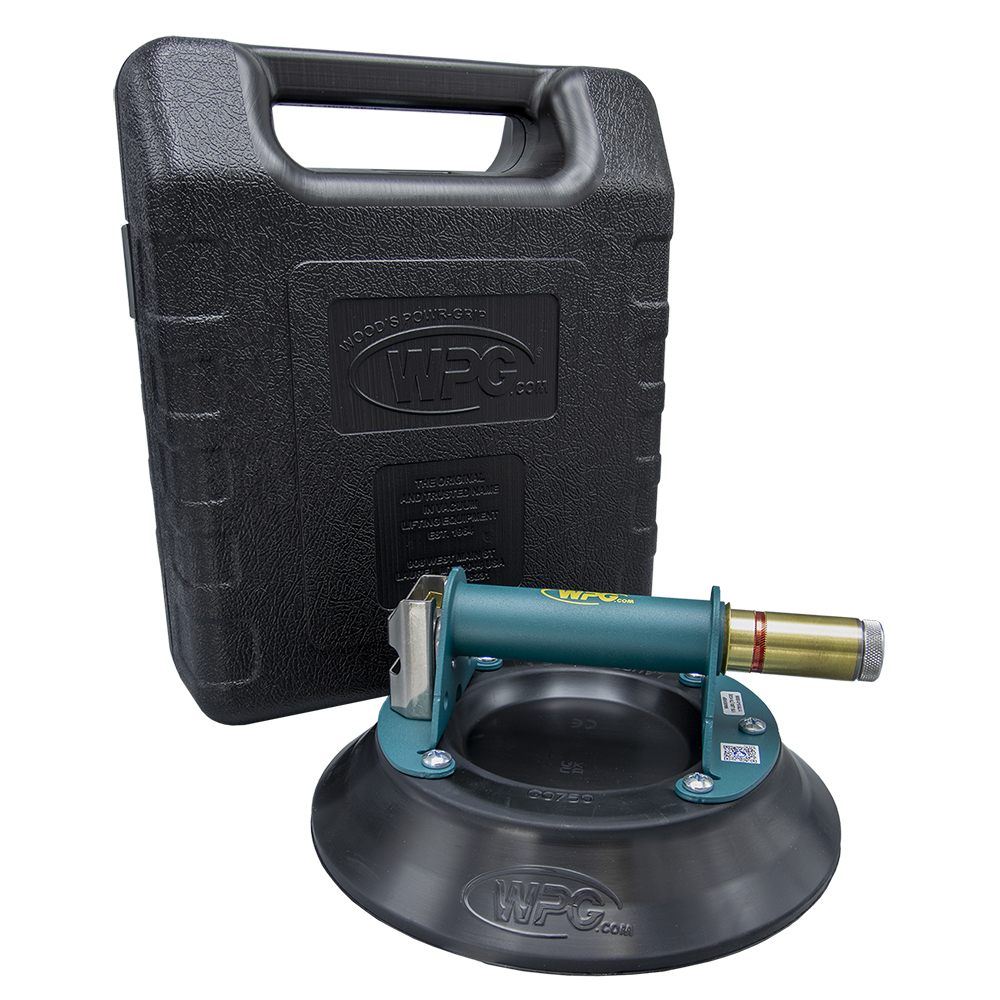

- Supplied with protective carrying case and battery
Specifications
Instructions Download
Specifications Download
Load Capacity 175 lbs [79 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Curved
Material and Ambient Temperature Range 10° F [-12° C] — 120° F [49° C]
Ideal Uses Curved or irregular nonporous surfaces when red-line indicator is difficult to see
Pad Diameter 10" [25 cm]
Pad Model G0750
Rubber Type Standard
Handle Type Metal
