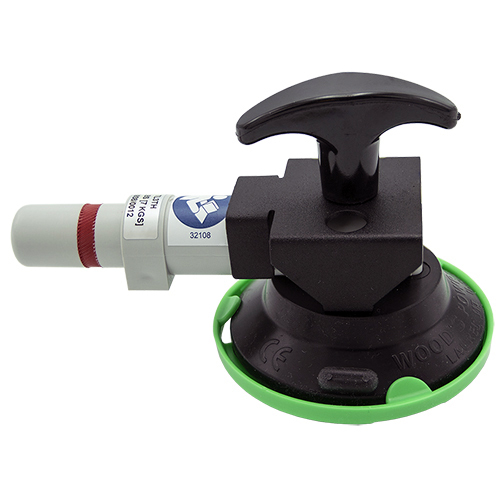

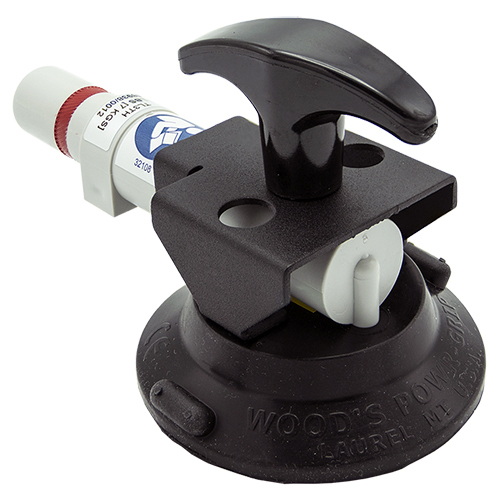

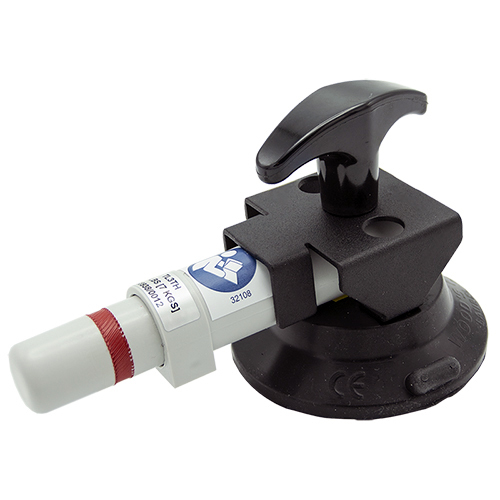

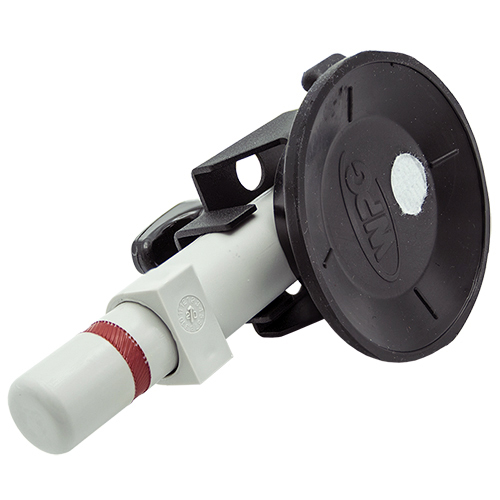

3" Hand Cup with T-Handle for Flat or Curved Surfaces

Stock: 91154
Model: TL3TH

This compact hand cup has a 15 lbs [7 kg] lifting capacity for the accurate positioning of small flat or curved items. This hand cup can also be used as a mounting cup, with 1/4-20 threaded stud when its handle is removed.

Details

Features:

  • Fast attach and release
  • Doubles as mounting cup - 1/4-20 threaded stud is exposed when handle removed
  • Red-line indicator warns user of any significant vacuum loss
  • Supplied with vacuum pad protector

How To Clean Your Vacuum Pad from Wood's Powr-Grip on Vimeo.

Specifications

Instructions Download
Troubleshooting Download
Specifications Download
Load Capacity 15 lbs [7 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F [-18° C] — 120° F [49° C]
Pad Diameter 3" [8 cm]
Pad Model TL3
Rubber Type UV Resistant
Handle Type Industrial-Grade Plastic
