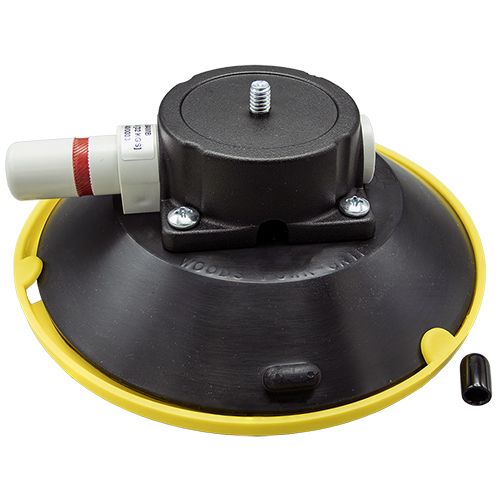

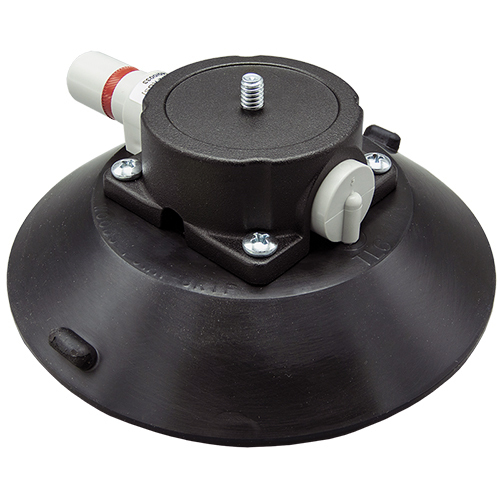

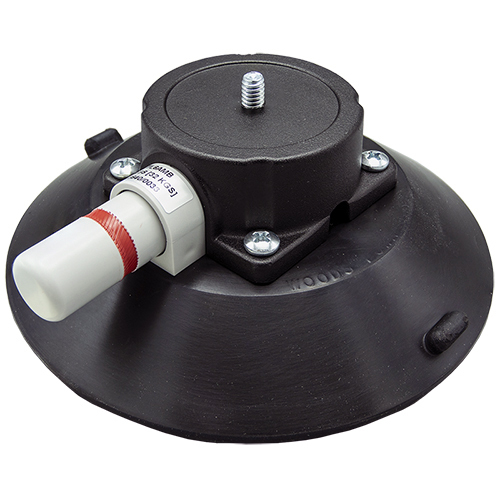

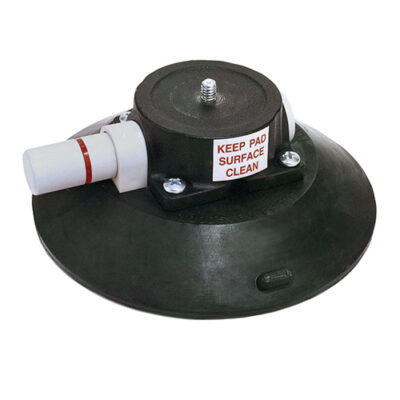

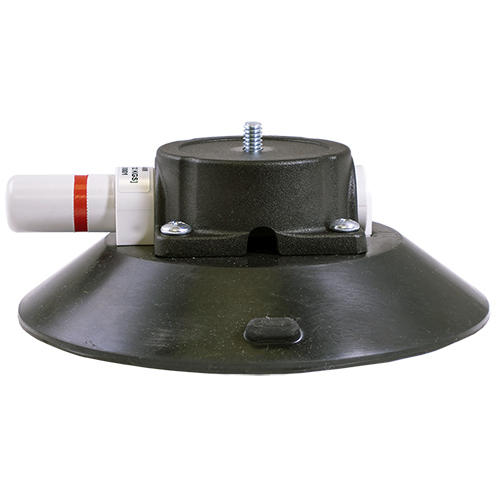

6" Mounting Cup w/ ¼-20 x ¼" Threaded Stud
Stock: 91350
Model: TL6AMB-91350
Provides a reliable, temporary mounting point for equipment, without marking or damaging most surfaces.
- 1/4" long 1/4-20 Threaded Stud
Details
Features & Benefits:
- Eliminates the need for drilling holes when mounting equipment
- Red-line indicator warns user of any significant vacuum loss
- Supplied with pad protector to prevent damage
Options:
- Other stud lengths and threads available
Specifications
Instructions Download
Troubleshooting Download
Connection Point 1/4" long 1/4-20 Threaded Stud
Ideal Uses Mounting equipment on smooth, nonporous surfaces
Load Capacity Click Here
Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F [-18° C] — 120° F [49° C]
Pad Diameter 6" [15 cm]
Pad Model TL6
Rubber Type Standard
Associated Parts
Stock#: 49386T
Model#: TL6
Model#: TL6
