Parts for Small Vacuum Cups

Need help? Click here for maintenance, troubleshooting and repair guide.

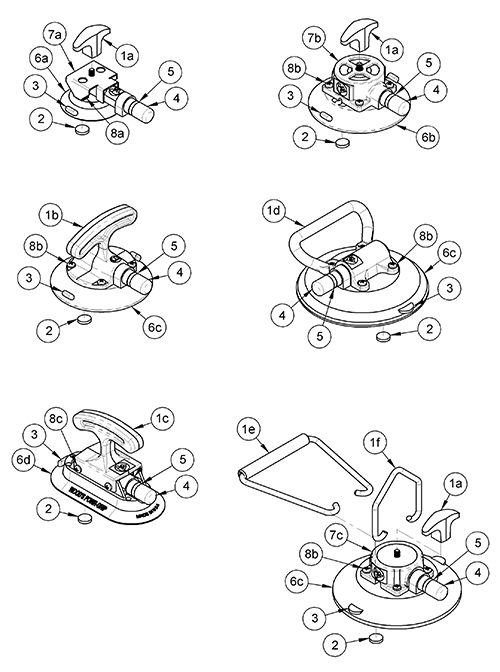

small hand cup parts
  1. Handle
    1. 15790 “T” (fits on 1/4-20 stud)
    2. 50205 Handi-Grip (for 4 1/2" and 6" pads)
    3. 60116 Handi-Grip (for 3" x 6" pads)
    4. 50230 Rigid
    5. 50102 Flip
    6. 50100 Tie-Down
  2. Air Filter
    90501
  3. Release Tab
  4. Pump w/ Plunger
    90111
  5. Red Line
  6. Vacuum Pad
    1. 49323T 3" Dia., Concave Face
    2. 49345T 4 1/2" Dia., Concave Face
      -or-
      49426T 6" Dia., Flat Face
      -or-
      49386T 6" Dia., Concave Face
    3. 49365T 3 x 6", Concave Face
  7. Accessory Mount
    1. 60118 TL3, 1/4-20 Stud
    2. 60181 Polycarbonate, 1/4-20 Insert
      -or-
      60180 Polycarbonate, 1/4-20 Stud
    3. 50220 Aluminum (for Tie-Down or Flip Handle)
      -or-
      50210 Aluminum (with 1/4-20 Stud)
  8. Screw
    1. 10156 10-32 x 1/4"
    2. 10020 10-32 x 1/2"
    3. 10014 10-32 x 7/16"
    4. 10008 10-32 x 3/8"

Pad Cover

2-Cup Case

  • 29322AM (for Rigid Handle, Tie-Down or Flip Handle cups)
  • 29322BM (for Handi-Grip cups)
