Details

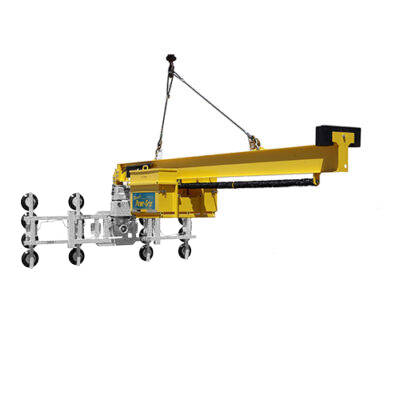

Allows MR16 Lifter to install load under gables, overhangs, or similar obstructions.
Features:
- Radio remote control - operates at a distance up to 250 ft [76 m]
- Prevents load release unless counterbalancer is correctly balanced
- Mounting platform allows for easy assembly and storage
- Limit switches prevent the counterbalancer from tilting more than 5° out of the horizontal position
Details:
Horizontal Reach:
- Minimum - 65" [1651 mm]
- Maximum - 83" [2108 mm]
For use with MR1611LDC Vacuum Lifter only.
Specifications
| Specifications | DOWNLOAD |
|---|---|
| Model | CB3DCS |
| SKU | CB3DCS |
| Load Capacity | 2800 lbs [1270 kg] (includes weight of MR16) |
| Ideal Uses | Placing loads under overhangs |
| Power System | DC Battery Power |
| Electrical Information | 12 volts DC, 58 amps |
| Material and Ambient Temperature-Range | 32°F [0° C] up to 100° F [38° C] |
| Charger Voltage | 100/120/240 |
| Lifter Weight | 1425 lbs [646 kg] (not including ballast and MR16) |
| Additional Information | Length: 222" [5636 mm] (not including MR16) |
