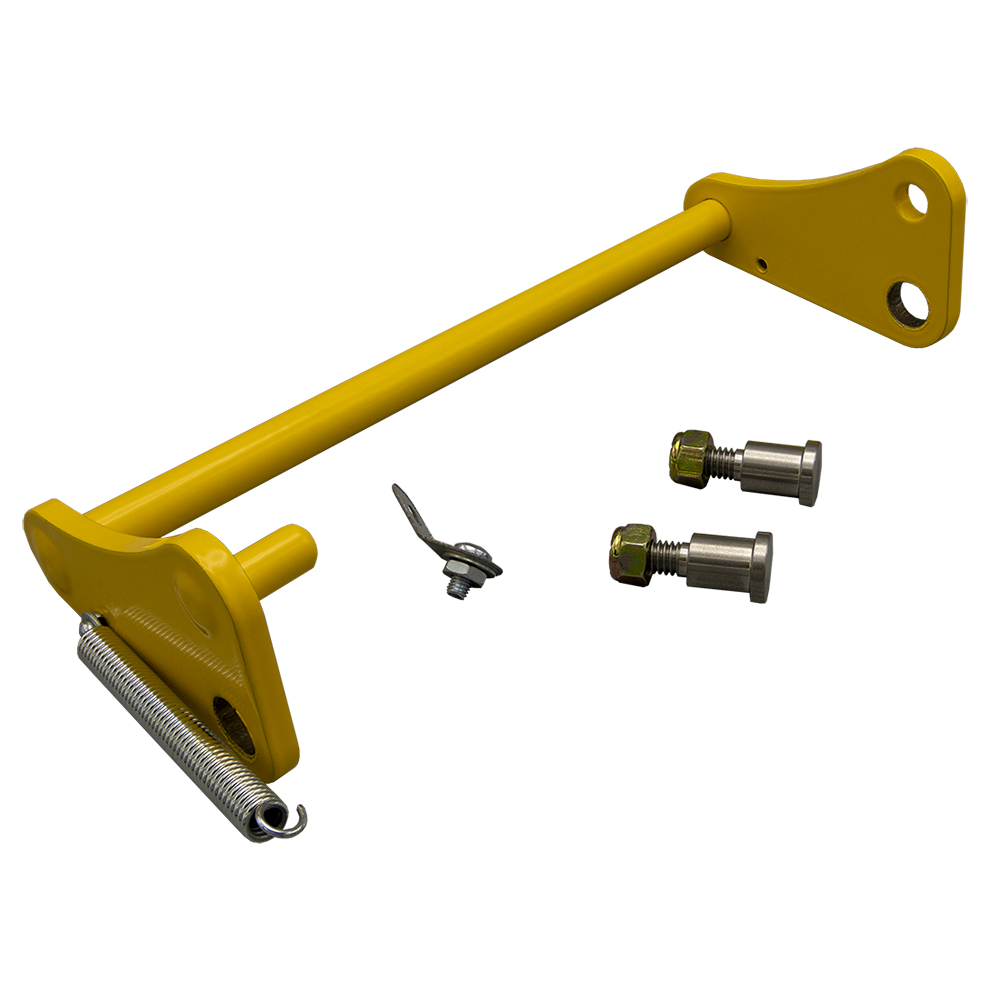

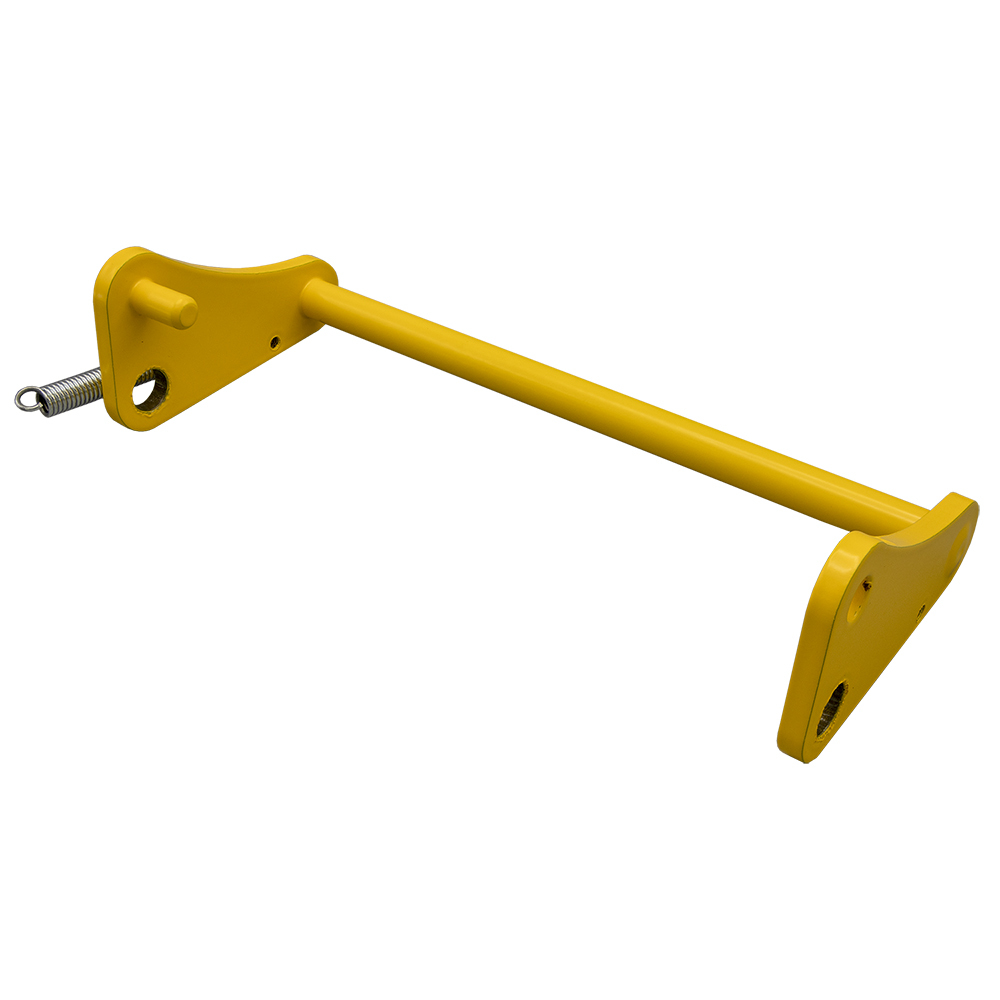

Lift Bar for Single Pad-Channel Lifter (P1)

Details

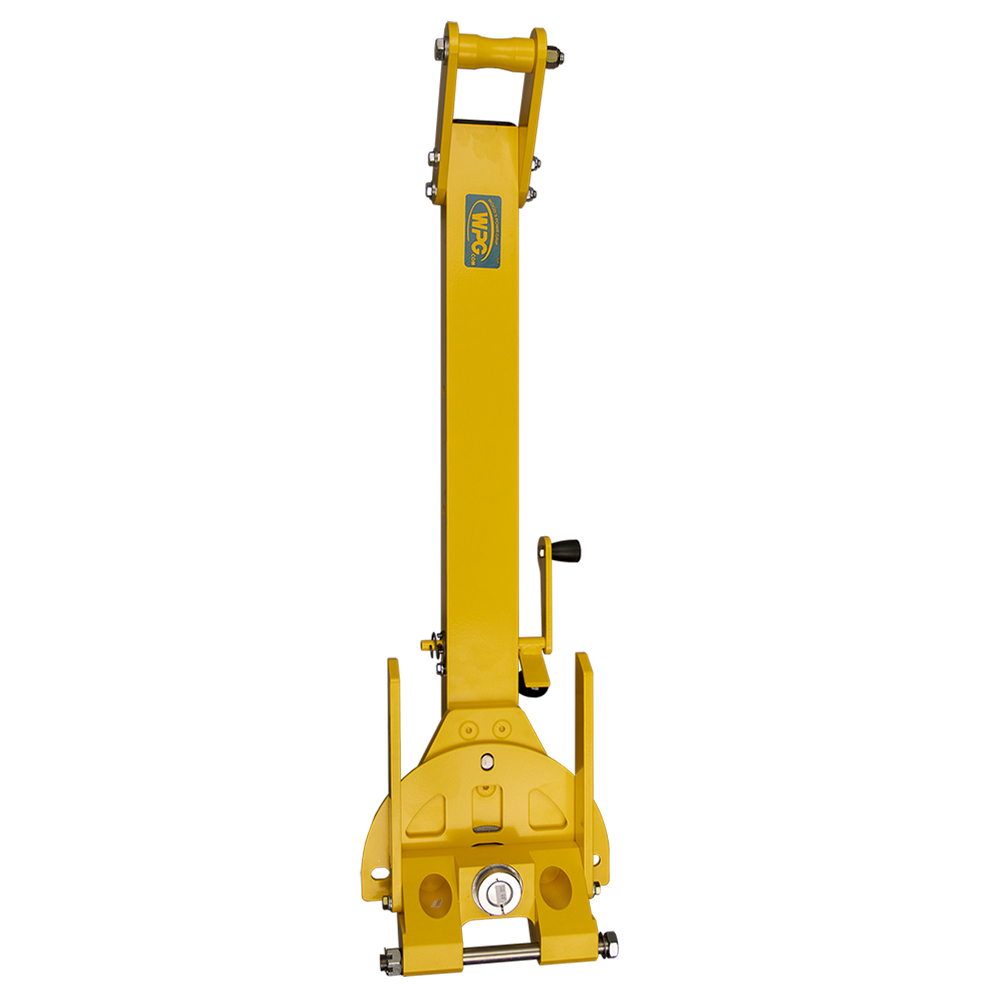

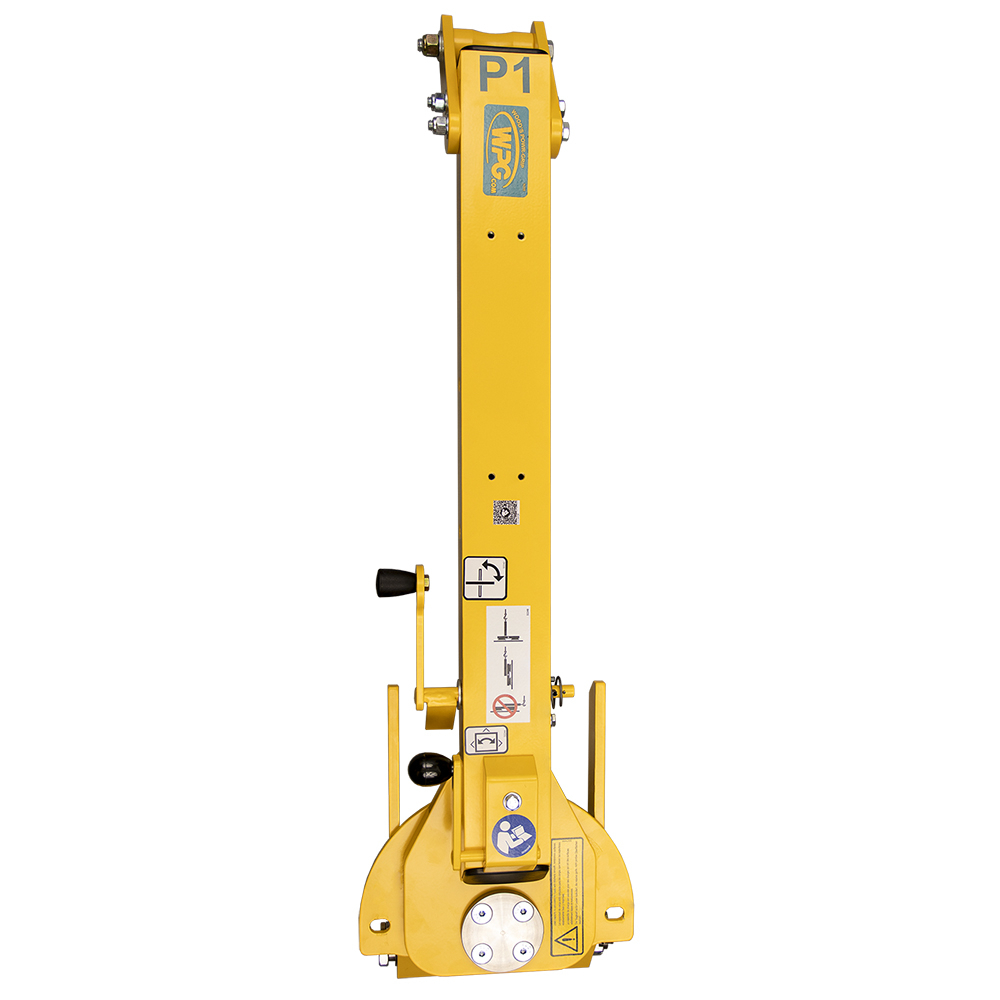

Replacement arm for P1 lifter, or optional add-on arm to convert a P2 Lifter into a P1 Lifter.

Load Movement:

• Manual rotation, 180° edgewise, with locking in three positions.
• Manual tilt, 90° between upright and flat, with automatic latching in upright position.
• Note: Lifters can be tilted only when lift bar is locked in center position.)

Design Standards:
ASME B30.20-2006 (BTH-1 Design Category "B", Service Class "0")
AS 4991-2004
