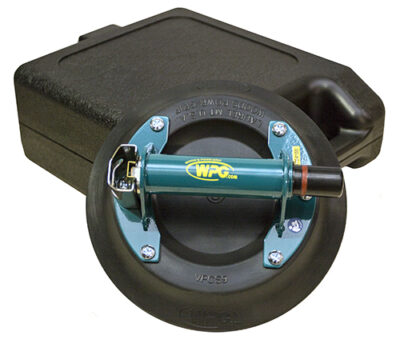

9" Hybrid Hand Cup for Flat or Curved Surfaces

Stock: 91630
Model: N5300CS
Made in Montana

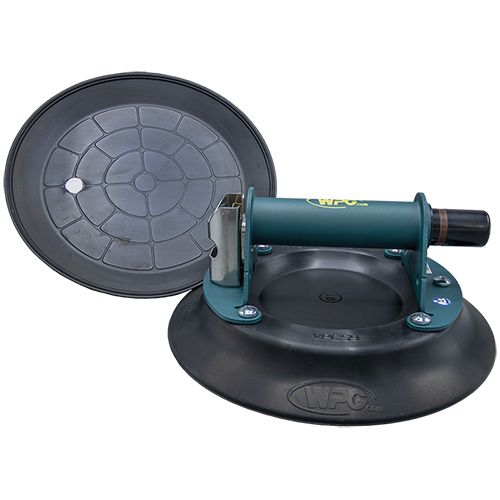

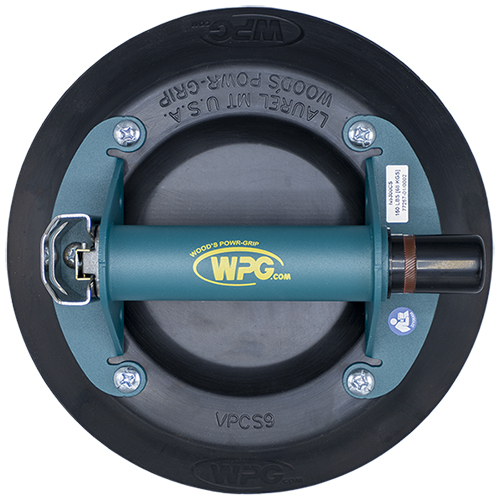

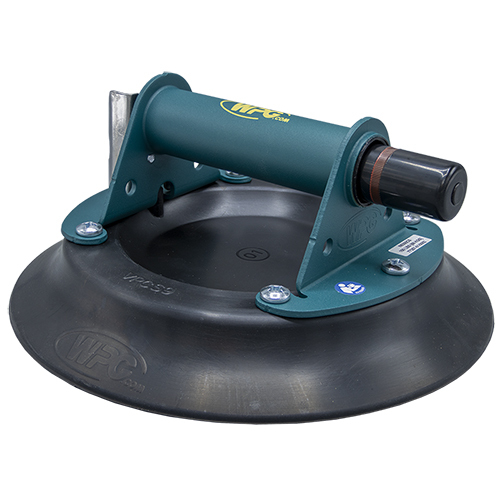

This hybrid cup features a metal handle with an industrial-grade plastic plunger that's economical to replace. The flexible vacuum pad edge ensures easy attachment on smooth, nonporous surfaces, whether flat or curved, and has a 150 lbs [68 kg] lifting capacity. Not for use with thin, fragile materials.

Details

Note: Not for materials thinner than 1/8".

Features:

  • Fast attach and release
  • Red-line indicator warns user of any significant vacuum loss
  • Eligible for WPG Hand Cup Exchange Program

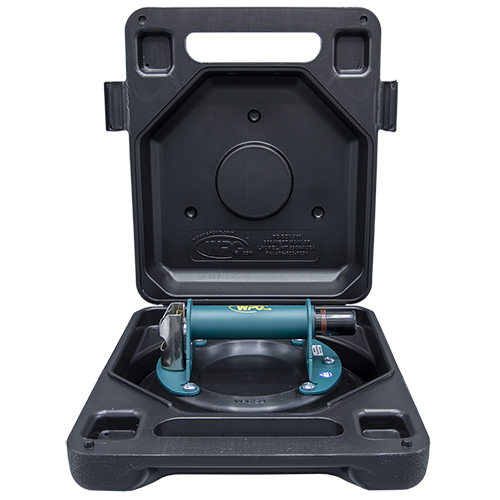

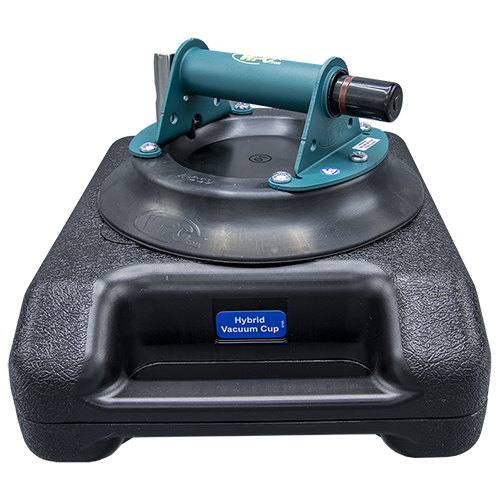

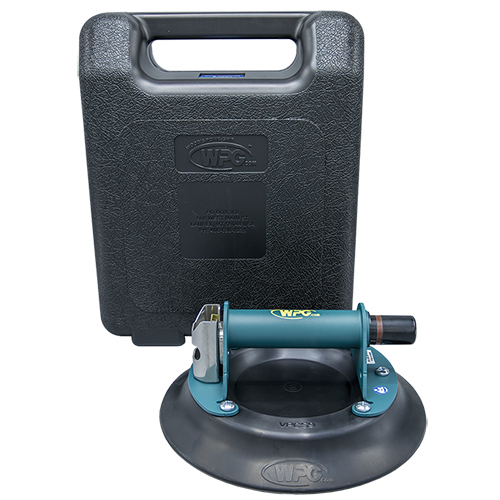

  • Supplied with protective carrying case

Specifications

Instructions Download
Troubleshooting Download
Specifications Download
Load Capacity 150 lbs [68 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Flat / Curved
Material and Ambient Temperature Range 10° F [-12° C] — 120° F [49° C]
Pad Diameter 9" [23 cm], Concave
Pad Model VPCS9
Rubber Type Standard
Handle Type Metal

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
