9" Hybrid Hand Cup for Flat Surfaces

Stock: 91620
Model: N5300

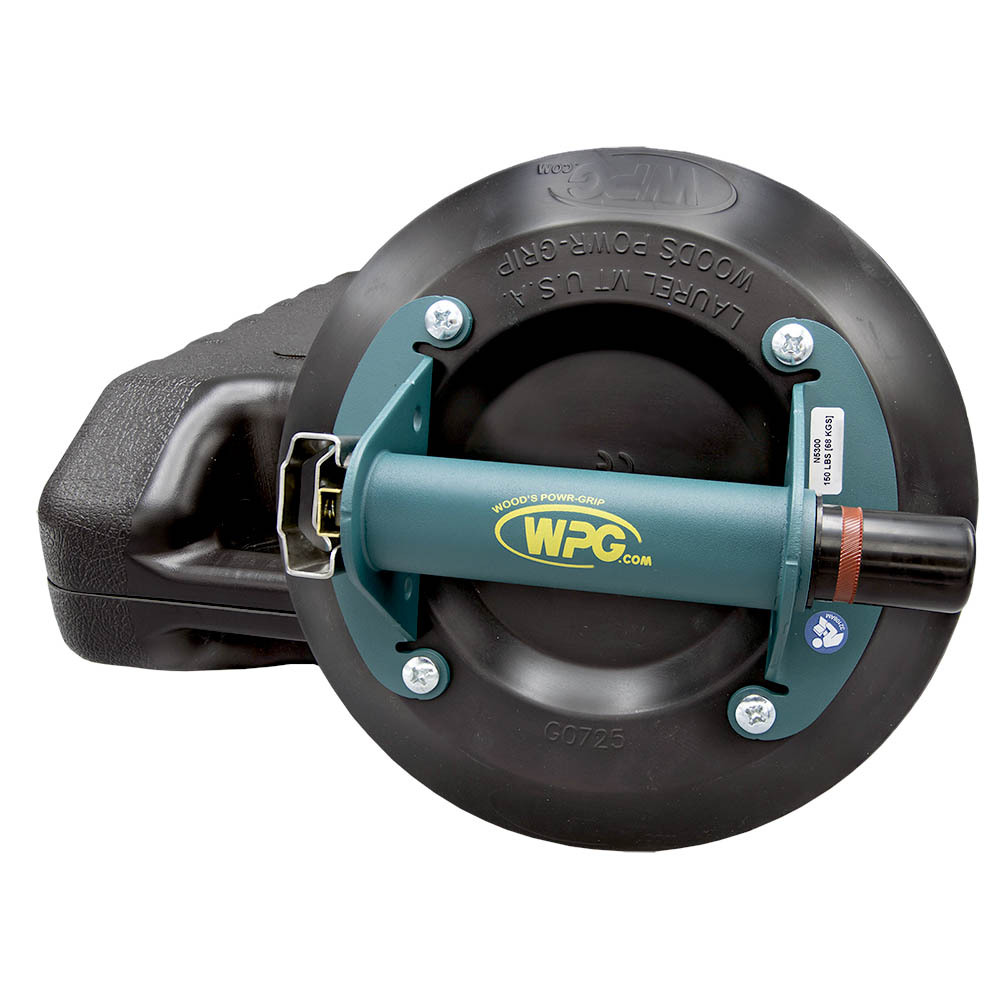

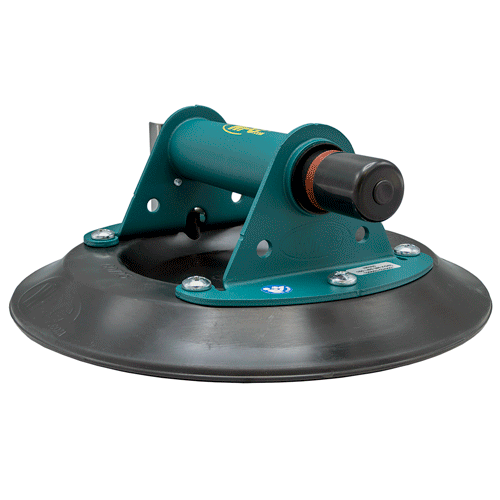

This hybrid cup features a metal handle with an industrial-grade plastic plunger that's economical to replace. The flexible vacuum pad edge quickly attaches to flat materials that may bend or flex when lifted and has a 150 lbs [68 kg] lifting capacity. Eligible for the WPG Hand Cup Exchange Program!

Details

Features:

  • Red-line indicator warns user of any significant vacuum loss
  • Eligible for WPG Hand Cup Exchange Program

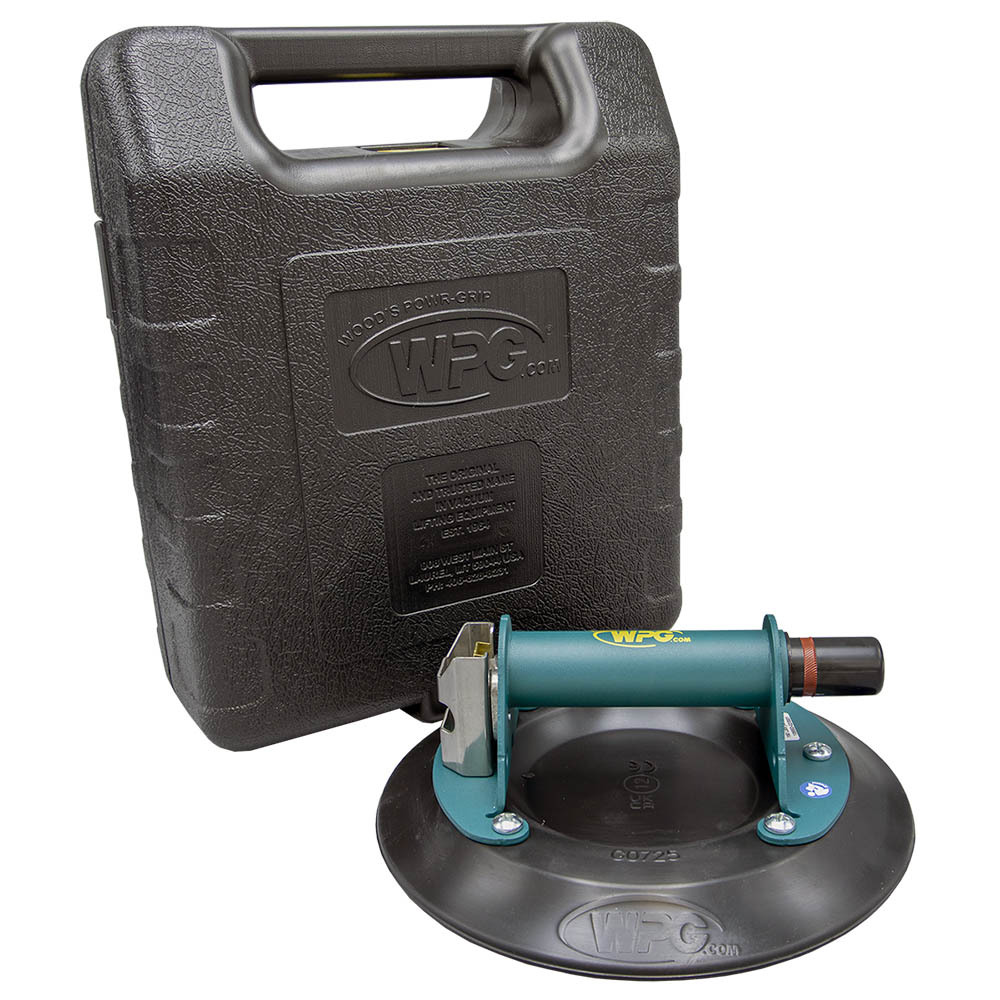

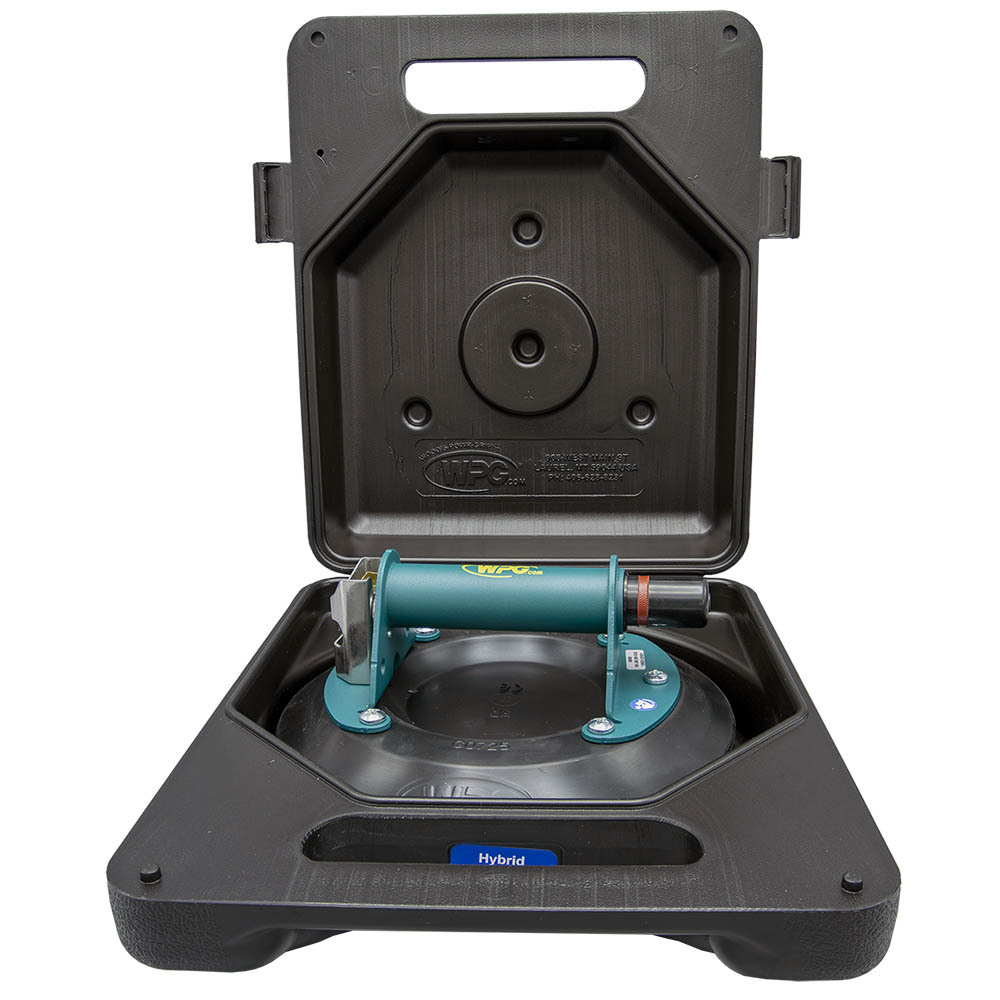

  • Supplied with protective carrying case

Specifications

Instructions Download
Troubleshooting Download
Specifications Download
Load Capacity 150 lbs [68 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Flat
Material and Ambient Temperature Range 10° F [-12° C] — 120° F [49° C]
Ideal Uses Flat materials that may bend or flex when lifted
Pad Diameter 9" [23 cm]
Pad Model G0725
Rubber Type Standard
Handle Type Metal

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
